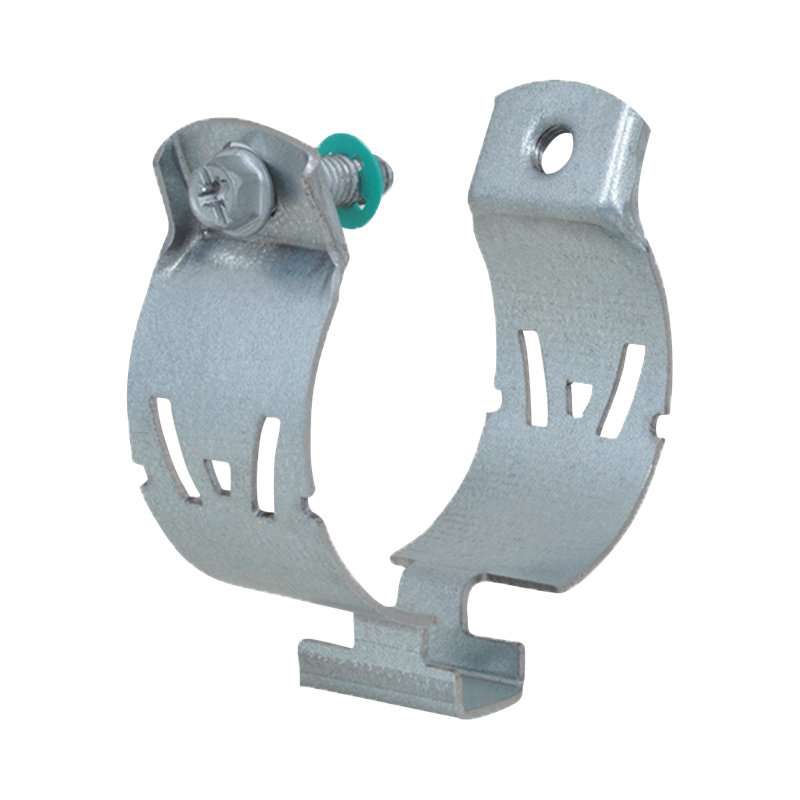

Walraven W1000 Strut Clamp Zn/Mg 38-42mm

to be used with steel pipes and EMT conduit

2015042

Get project support

Walraven W1000 Strut Clamp Zn/Mg 38-42mm

to be used with steel pipes and EMT conduit

2015042

Consent

Features

  • the new alternative to the standard Strut Clamp
  • 3-way use, on strut, on threaded rod, directly on wall or ceiling
  • one-piece design - no loose parts
  • easier, faster, safer - installs with one hand
  • 3-way screw head - Phillips, flat and hex
  • unique design allows one clamp to fit multiple pipe sizes - less items to stock
  • W Series Clamps are boxed for easy handling - no more bags
  • material: steel 1.0242
  • surface treatment: high grade Zn-Mg based coating (600 hours salt spray)
  • UL 1565 Listed

Specifications

Identification

Identification
Product Number 2015042

Product Dimensions

Product Dimensions
Outside Pipe Diameter (mm) Ref. letter: D 38 - 42
Total Height (mm) Ref. letter: H 72.7
Total Width (mm) Ref. letter: W 42
Total Depth (mm) Ref. letter: DtT 35
Material Width (mm) Ref. letter: MW 35
Material Thickness (mm) Ref. letter: MT 1.75
Connection Thread Ref. letter: G 3/8”

Technical characteristics

Technical characteristics
Colour Zinc
Connection None
Lining None
Lock Facility Single screw
Material Steel
Material Quality St. 1.0242
Surface Protection Zn-Mg
Surface Treatment Untreated

Approvals & Declarations

Approvals & Declarations
EPD (Environmental Product Declaration) Yes
UL listing certificate Yes
ULC listing certificate Yes

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 980

Weights

Weights
Weight [g] (g) 94
Weight [kg] (kg) 0.09

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 25
Pack 1 Height (mm) 105
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 2461
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 3600
Pack 2 Height (mm) 984
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 375384
Pack 3 Shape No Pack Type Available
Pack 4 Shape No Pack Type Available

Downloads & certificates

Productsheet H32215 Walraven W1000 Strut Clamp PDF | EN | Product info sheet Download
