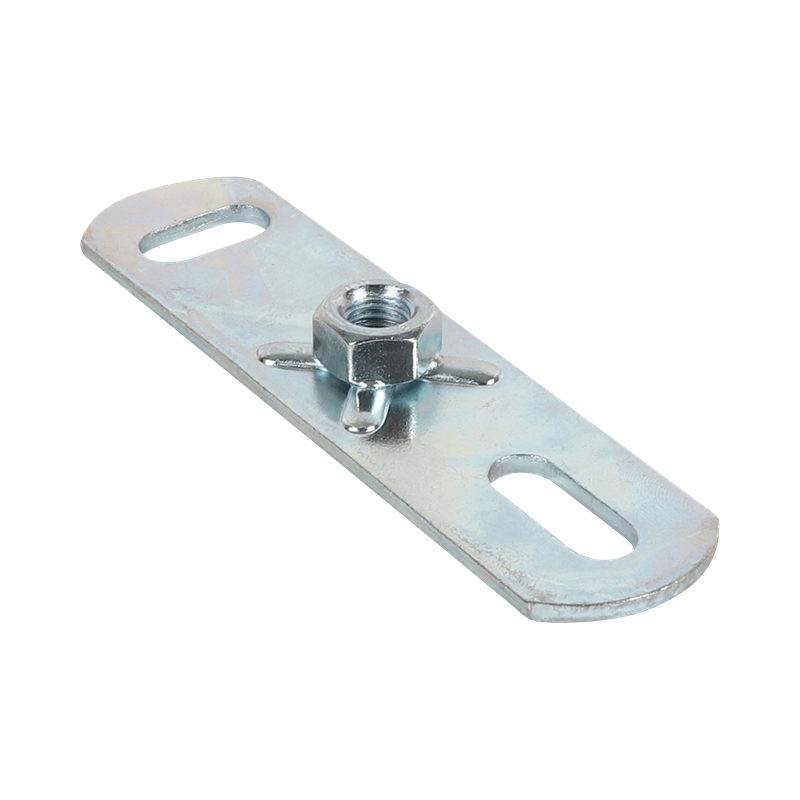

Walraven Wall Plate Resistance Welded
fixing to ceiling or floor
Features
- fixings to ceiling or floor (only tension loads recommended)
- slots at 90° to each other to simplify fixing
- with resistance welded connection nut
- material: steel
- zinc plated
Articles
| Product Number | Connection Thread | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Fixing Slot 2 | Heart To Heart Distance | Maximum Allowed Load Faz | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | G | H | W | L | MT | FS | FS 2 | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
6713008
|
M8 | 12 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 3200 | |
|
6713010
|
M10 | 17 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 3500 | |
|
6713012
|
M12 | 17 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 3500 | |
|
6713016
|
M16 | 20 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 3800 | |
|
6713021
|
G½” | 22 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 3800 |
