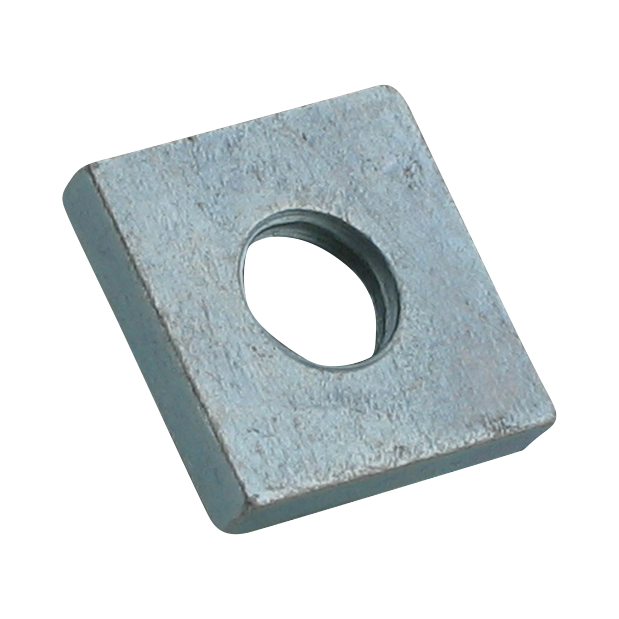

Walraven Slide Nut Square WM1-35 zp M6

threaded plate to connect components to rails

6519910
Download produktblad

Få projektstøtte

Walraven Slide Nut Square WM1-35 zp M6

threaded plate to connect components to rails

6519910

Consent

Funktioner

  • suitable for rails 27x18, 30x15, 30x20, 30x30, 30x45
  • sqaure shape for extra security, due to its geometry needs to get installed from the side into the profile
  • material: steel 1.0332
  • zinc plated
Walraven Slide Nut Square WM1-35 zp M6
Walraven Slide Nut Square WM1-35 zp M6
Walraven Slide Nut Square WM1-35 zp M6
Walraven Slide Nut Square WM1-35 zp M6

Specifikationer

Walraven Square Slide Nut

Identifikation
Identifikation
Product Number 6519910

Product Dimensions
Product Dimensions
Thread Size Ref.brev: TS M6
Material Thickness (mm) Ref.brev: MT 4
Total Height (mm) Ref.brev: H 4
Total Width (mm) Ref.brev: W 25
Total Depth (mm) Ref.brev: DtT 25
Depth (mm) Ref.brev: Dt 25
Thread Pitch (mm) Ref.brev: TP 1
Width (mm) Ref.brev: w 25

Technical characteristics
Technical characteristics
For Rail Type 30x15, 30x20, 30x30, 38x40
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated
Thread Type Ref.brev: TT Metric
With Spring Height? No
With Toothing? No
With U Washer? No
With Washer? No

Approvals & Declarations
Approvals & Declarations
CE mark No
EN 1363-1 test report No
European Technical Assessment (ETA) No
UPC listing certificate No

Weights
Weights
Weight [g] (g) 18
Weight [kg] (kg) 0.02

Packaging information
Packaging information
Pack 1 Shape Bag
Pack 1 Qty 50
Pack 1 Height (mm) 30
Pack 1 Width (mm) 80
Pack 1 Length (mm) 110
Pack 1 Weight (g) 880
Pack 2 Shape Cardboard Box
Pack 2 Qty 250
Pack 2 Height (mm) 70
Pack 2 Width (mm) 133
Pack 2 Length (mm) 200
Pack 2 Weight (g) 4546
Pack 3 Shape Pallet ISO 0-1/1
Pack 3 Qty 108000
Pack 3 Height (mm) 984
Pack 3 Width (mm) 1200
Pack 3 Length (mm) 800
Pack 3 Weight (g) 1921800
Pack 4 Shape No Pack Type Available

Downloads og certifikater

Productsheet G3020 Walraven Square Slide Nut PDF | EN | Product info sheet Download
