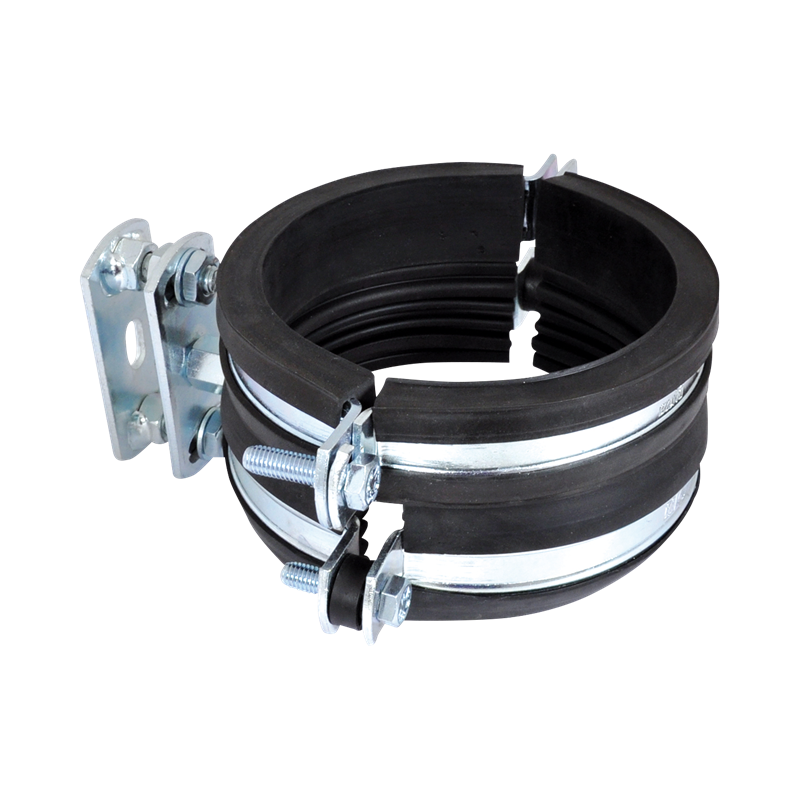

Walraven BISMAT® 1000 Stand Pipe Clamp
for stand pipes
Features
- adjustable wall plate with Walraven BISMAT® SL Guidance clamp and Walraven BISMAT® SX Socket clamp
- unique set for the installation of cast iron or plastic stand pipes
- to be mounted every second floor, height 3.0 m (from Ø 125 mm, one each floor)
- fixing free of tension throughout infinite adjustment
- adjustable distance between pipe and wall
- material: steel
- zinc plated
- noise insulation tested according to DIN 4109 (insulation exceeds standards)
Članci
| Product Number | Outside Pipe Diameter | DN | Total Height | Total Width | Total Depth | Distance 1 | Distance 2 | Fixing Slot | Material Thickness | Maximum Allowed Load Faz | Popis spremljenih članaka |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | DN | H | W | DtT | Dist 1 | Dist 2 | FS | MT | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
3363070
|
75 | DN 70 | 160 | 149 | 98 | 31.5 | 73.6 | 19.5x10 | 3 | 650 | |
|
3363075
|
78 | DN 70 | 165 | 154 | 98 | 31.5 | 76 | 19.5x10 | 3 | 650 | |
|
3363090
|
89 | DN 80 | 174 | 163 | 98 | 31.5 | 80.55 | 19.5x10 | 3 | 820 | |
|
3363100
|
110 | DN 100 | 195 | 184 | 98 | 31.5 | 91.1 | 19.5x10 | 3 | 820 | |
|
3363125
|
125 | DN 125 | 210 | 199 | 98 | 31.5 | 98.5 | 19.5x10 | 3 | 820 | |
|
3363150
|
160 | DN 150 | 245 | 234 | 98 | 31.5 | 116 | 19.5x10 | 3 | 820 | |
|
3363200
|
210 | DN 200 | 284 | 295 | 98 | 31.5 | 141 | 19.5x10 | 3 | 820 |
Downloads & certificates
Neki su dokumenti specifični za članak. Odaberite članak iznad kako biste vidjeli sve njegove preuzimanja.
