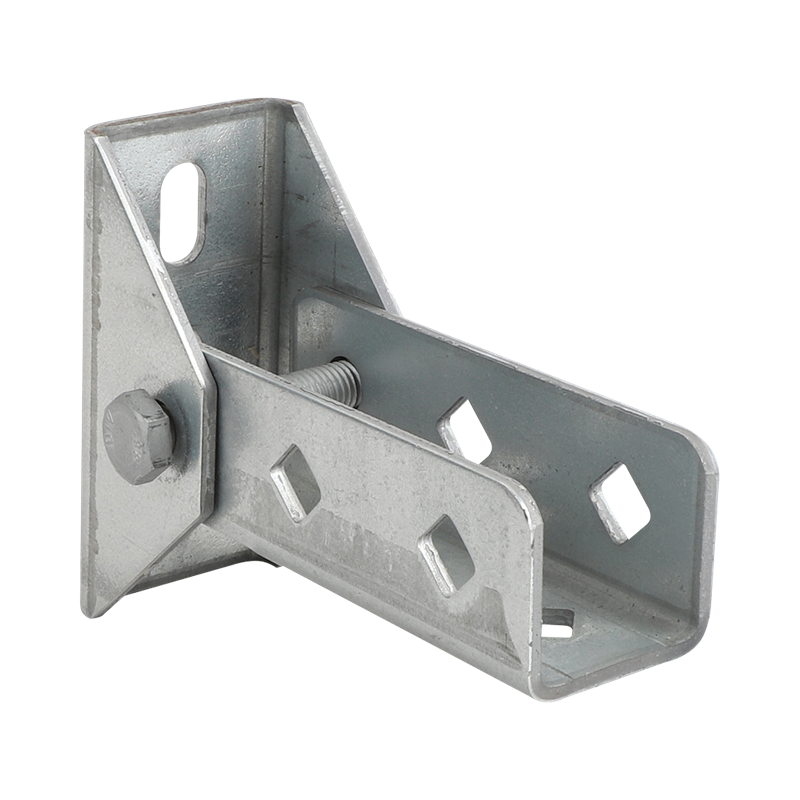

Walraven Strut Wall Plate hinged BUP 41x41

hinged base foot to connect fixing rails with an angle

66588814 Product line: Walraven RapidStrut®
Download product sheet

Get project support

Walraven Strut Wall Plate hinged BUP 41x41

hinged base foot to connect fixing rails with an angle

66588814

Consent

Features

  • wall plate with hinging U-profile
  • for wall fixing of rail
  • rail can be fixed with slot downwards or sideways
  • also used to strengthen constructions with Walraven RapidStrut® 41x41
  • material: steel 1.0332
  • product is part of the Walraven Walraven UltraProtect® 1000 system
  • suitable for in- and outdoor applications
  • stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Walraven Strut Wall Plate hinged BUP 41x41
Walraven Strut Wall Plate hinged BUP 41x41
Safe Load Explanation
Walraven Strut Wall Plate hinged BUP 41x41
Walraven Strut Wall Plate hinged BUP 41x41
Safe Load Explanation

Specifications

Walraven RapidStrut® Wall Plate (Hinged) (BUP1000)

Identification
Identification
Product Number 66588814

Product Dimensions
Product Dimensions
Total Height (mm) Ref. letter: H 156.5
Total Width (mm) Ref. letter: W 82.2
Total Length (mm) Ref. letter: L 120
Width (mm) Ref. letter: w 59
Height (mm) Ref. letter: h 45
Heart To Heart Distance (mm) Ref. letter: k 70.6
Anchoring Slot (mm) Ref. letter: AS 25x12.2
Fixing Hole (mm) Ref. letter: FH 13.8
Material Thickness (mm) Ref. letter: MT 4
Material Thickness 2 (mm) Ref. letter: MT 2 4

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Material Steel
Material Quality St. 1.0332
Surface Protection BUP1000
Surface Treatment Untreated

Approvals & Declarations
Approvals & Declarations
EN 1363-1 test report No

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 2500

Weights
Weights
Weight [g] (g) 1040
Weight [kg] (kg) 1.04

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 10
Pack 1 Height (mm) 187
Pack 1 Width (mm) 206
Pack 1 Length (mm) 272
Pack 1 Weight (g) 10634
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 900
Pack 2 Height (mm) 1079
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 978060
Pack 3 Shape No Pack Type Available

Downloads & certificates

Productsheet H1225 Walraven RapidStrut® Wall Plate (Hinged) (BUP1000) PDF | EN | Product info sheet Download
