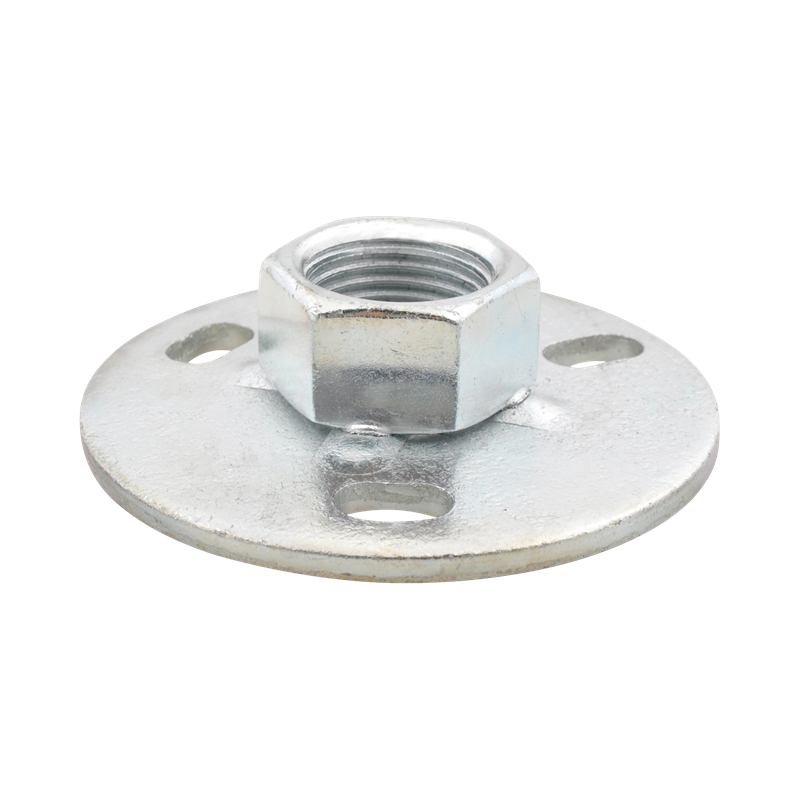

Walraven Wall Plate
fixing to ceiling or floor
Features
- fixings to ceiling or floor (only tension loads recommended)
- with 3 slots to simplify fixing
- with resistance welded connection nut
- material: steel
- zinc plated
Članci
| Product Number | Connection Thread | Connection Thread 2 | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Heart To Heart Distance | Maximum Allowed Load Faz | Popis spremljenih članaka |
|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | G | G2 | H | W | L | MT | FS | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||
6709021
|
G½” | M10 | 20 | 70 | 70 | 4 | 12x7 | 43.3 | 2500 |
