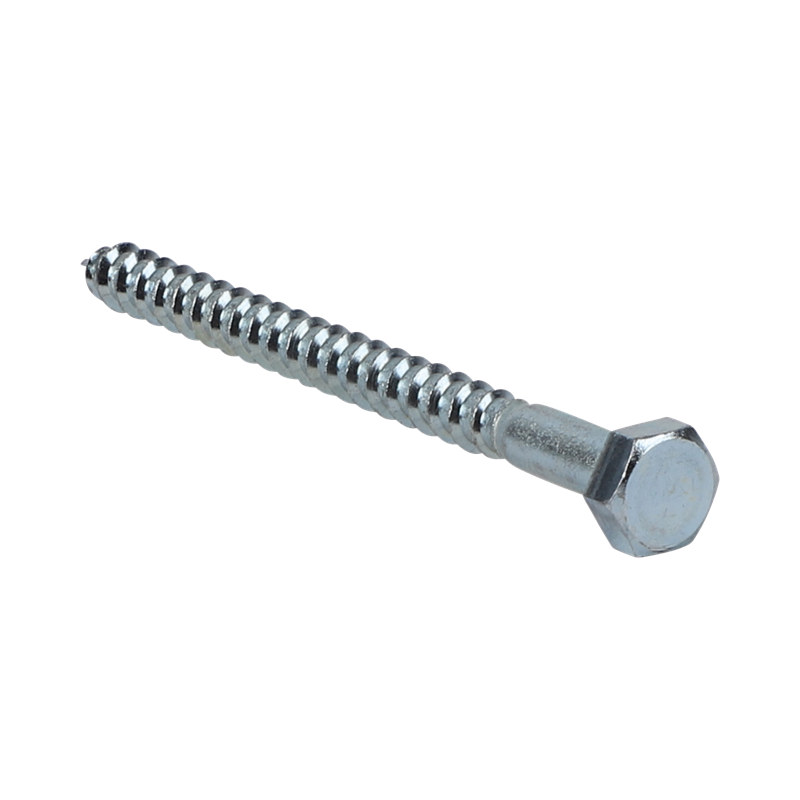

Walraven Hexagon Wood Screw zp DIN 571 H10x80mm
for wall and ceiling connections
Savybės
- according to DIN 571
- material: steel
- zinc plated
Specifikacijos
Identifikavimas
| Product Number | 6193008 |
|---|
Product Dimensions
| Head Width (mm) Nuorodos raštas: HW | 18.7 |
|---|---|
| Length (mm) Nuorodos raštas: l | 80 |
| Length Wood Thread (mm) Nuorodos raštas: Lh | 50 |
| Nominal Head Height (mm) Nuorodos raštas: HH,n | 7 |
| Shaft Diameter (mm) Nuorodos raštas: SD | 10 |
| Total Height (mm) Nuorodos raštas: H | 17 |
| Total Length (mm) Nuorodos raštas: L | 87 |
| Total Width (mm) Nuorodos raštas: W | 17 |
| Width Across Flats (mm) Nuorodos raštas: WAF | 17 |
| Wood Thread Diameter (mm) Nuorodos raštas: Tdw | 10 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Head Shape | Hexagon Head |
| Key Driver Size Nuorodos raštas: Drive | WAF17 |
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | Class 4.8 |
| Screwing System | External hexagon |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Nuorodos raštas: TT | Wood |
Weights
| Weight [g] (g) | 43.2 |
|---|---|
| Weight [kg] (kg) | 0.04 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 100 |
| Pack 1 Width (mm) | 88 |
| Pack 1 Length (mm) | 192 |
| Pack 1 Weight (g) | 2230 |
| Pack 2 Shape | No Pack Type Available |
Atsisiuntimai ir sertifikatai
