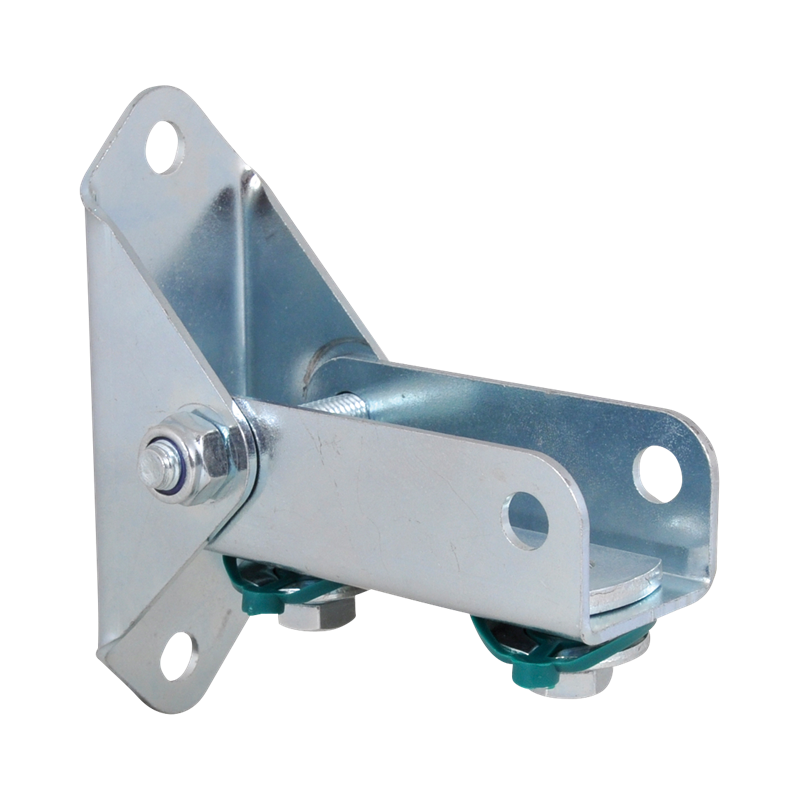

Walraven RapidRail® Wall Plate (Hinged)
adjustable base foot to connect fixing rails
Features
- wall plate with hinging U-profile
- support with flexible angle to strengthen rail constructions
- for fixing of rail to sloping walls
- material: steel
- zinc plated
Articles
| Product Number | For Rail Type | Total Height | Total Width | Total Length | Width | Height | Length | Heart To Heart Distance | Fixing Hole | Material Thickness | Material Thickness 2 | Saved articles list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | H | W | L | w | h | l | k | FH | MT | MT 2 | ||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
6613250
|
27x18, 30x15, 30x20, 30x30, 30x45, 38x40 | 107 | 55.3 | 99.3 | 30 | 27 | 81.5 | 87 | 8.5 | 2 | 2 |
