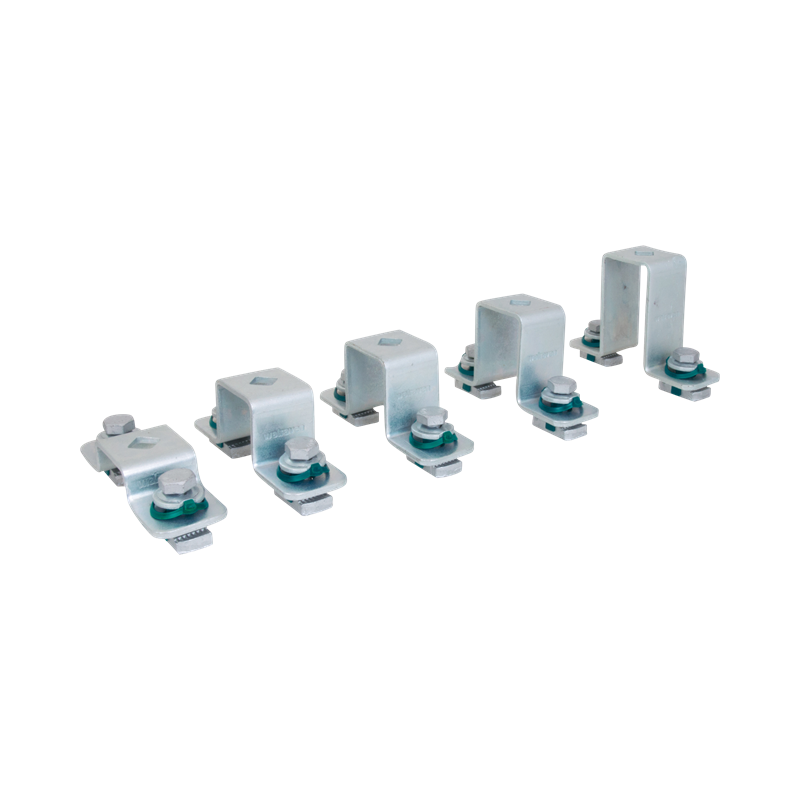

Walraven RapidStrut® Cross Connector G2 BUP 41x41

to make Strut rail fabrications

665885404 Product line: Walraven RapidStrut®Application: Indoor HVAC fixings & supports

Features

connector with pre-assembled Walraven RapidStrut® Slide nut(s)
to make fabrication with Walraven RapidStrut® Rail
ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
'Direct Twist' technology for easy and secure installation
visual guide to check the position of the slide nut
optimized for easy installation with electrical tools
material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
product is part of the Walraven Walraven UltraProtect® 1000 system
suitable for in- and outdoor applications
stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Identification
Product Number	665885404

Product Dimensions
Height (mm) Ref. letter: h	40
Width (mm) Ref. letter: w	40
Length (mm) Ref. letter: l	42
Material Thickness (mm) Ref. letter: MT	4
Total Height (mm) Ref. letter: H	54.75
Total Width (mm) Ref. letter: W	40
Total Length (mm) Ref. letter: L	132

Technical characteristics
For Rail Type	41x41
Torque Moment For Installation (Nm) Ref. letter: Tinst	40
Material	Steel
Material Quality	St. 1.0332
Model	Cross connector
Suitable for	C-Profile
Surface Protection	BUP1000
Surface Treatment	Untreated

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z	8420
Maximum Allowed Load Fax (N) Ref. letter: Fa,x	4380

Weights
Weight [g] (g)	386
Weight [kg] (kg)	0.39
