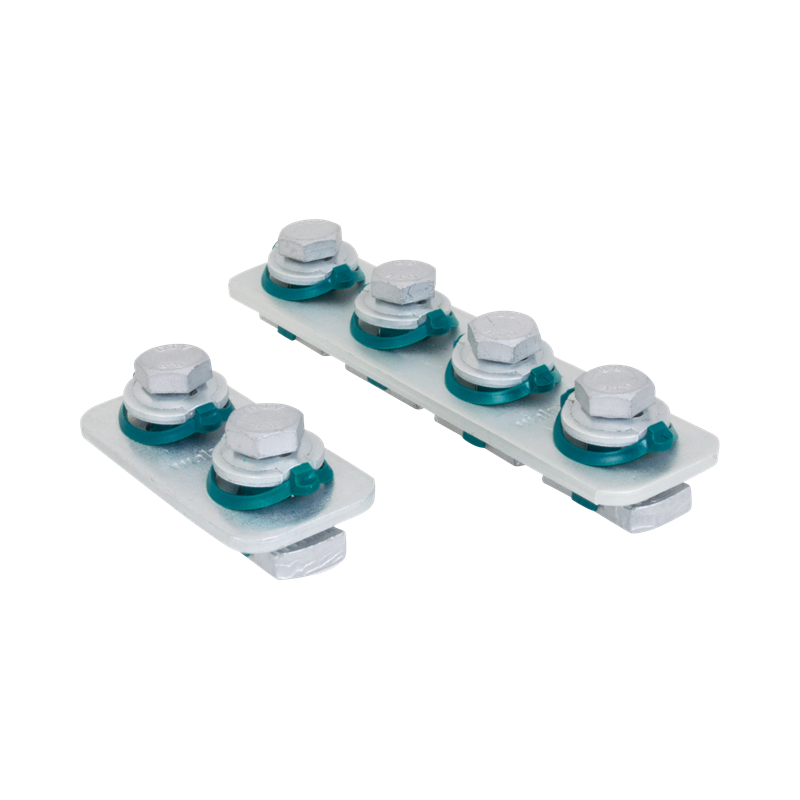

Walraven RapidStrut® Connector Str. G2 BUP 82mm

to make Strut rail fabrications

665885184 Product line: Walraven RapidStrut®

Features

connector with pre-assembled Walraven RapidStrut® Slide nut(s)
to make fabrication with Walraven RapidStrut® Rail
ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
'Direct Twist' technology for easy and secure installation
visual guide to check the position of the slide nut
optimized for easy installation with electrical tools
material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
product is part of the Walraven Walraven UltraProtect® 1000 system
suitable for in- and outdoor applications
stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Identification
Product Number	665885184

Product Dimensions
Height (mm) Ref. letter: h	4
Length (mm) Ref. letter: l	82
Material Thickness (mm) Ref. letter: MT	4
Heart To Heart Distance (mm) Ref. letter: k	41
Total Height (mm) Ref. letter: H	31.4
Total Width (mm) Ref. letter: W	40
Total Length (mm) Ref. letter: L	82

Technical characteristics
For Rail Type	41x21, 41x41, 41x51, 41x62, 41x82
Torque Moment For Installation (Nm) Ref. letter: Tinst	30
Material	Steel
Material Quality	St. 1.0332
Model	Flat coupler
Suitable for	C-Profile
Surface Protection	BUP1000
Surface Treatment	Untreated

Weights
Weight [g] (g)	241
Weight [kg] (kg)	0.24
