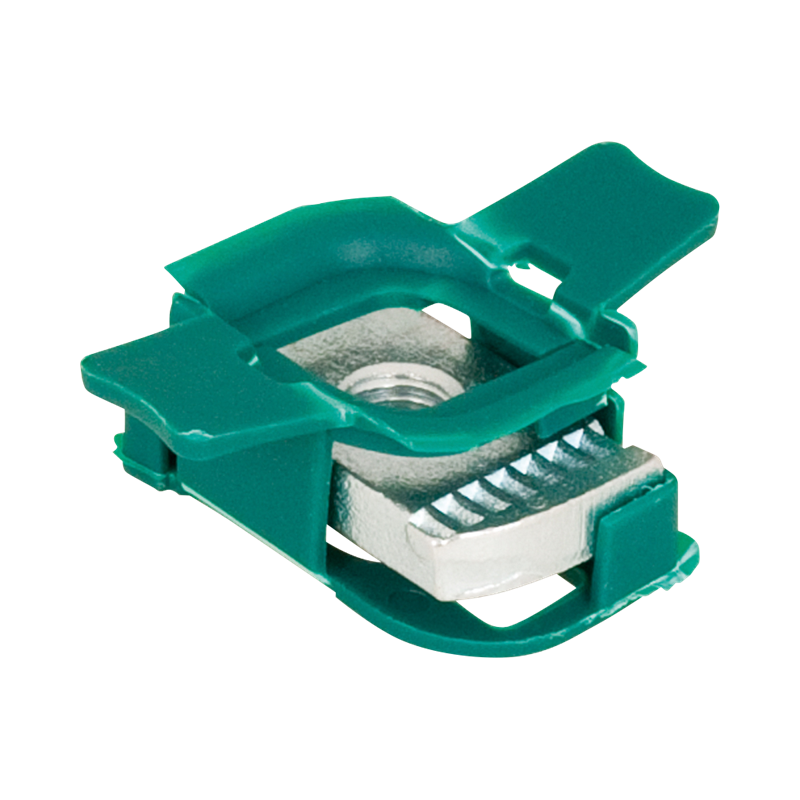

Walraven Strut Slide Nut zp PP tabs M8
to connect construction parts to the rail
Features
- slide nut with plastic 'tabs'
- for all types of Walraven RapidStrut® Rail
- for tight fixing of accessories (e.g. connectors) on rail
- with plastic tabs which simplifies inserting and positioning
- material: slide nut made of steel 1.0332; tabs made of PP (polypropylene), green
- zinc plated
- M10 & M12 tested for fire safety according to EN 1366-1.
- Tested values in combination with Walraven RapidStrut® Rail 41x41x2.5mm.
Specifications
Identification
| Product Number | 6518608 |
|---|
Product Dimensions
| Thread Size Ref. letter: TS | M8 |
|---|---|
| Material Thickness (mm) Ref. letter: MT | 6 |
| Total Height (mm) Ref. letter: H | 21.28 |
| Total Width (mm) Ref. letter: W | 35.7 |
| Total Depth (mm) Ref. letter: DtT | 47.13 |
| Depth (mm) Ref. letter: Dt | 19 |
| Thread Pitch (mm) Ref. letter: TP | 1.25 |
| Width (mm) Ref. letter: w | 34 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 25 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
| With Spring Height? | No |
| With Toothing? | Yes |
| With U Washer? | No |
| With Washer? | No |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
| UPC listing certificate | No |
Safeloading
| Maximum Allowed Load Fax (N) Ref. letter: Fa,x | 2200 |
|---|---|
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 4500 |
Weights
| Weight [g] (g) | 26.9 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 70 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 2789 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 21600 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 623424 |
| Pack 3 Shape | No Pack Type Available |
