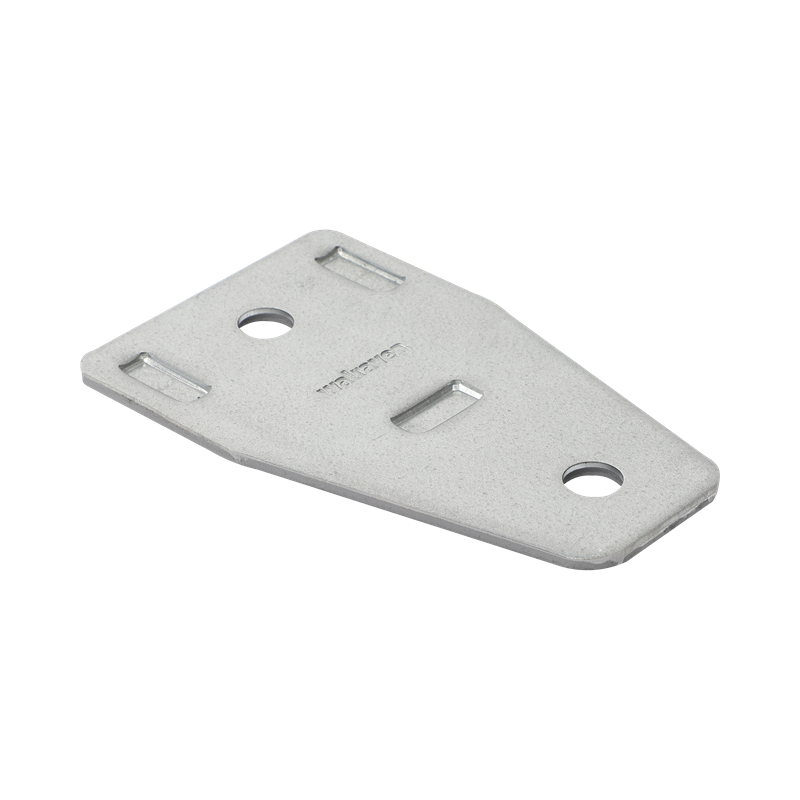

Walraven Strut T-Connector flat BUP 131x80mm

to make Strut rail fabrications

66588301 Product line: Walraven RapidStrut®
Download product sheet

Get project support

Walraven Strut T-Connector flat BUP 131x80mm

to make Strut rail fabrications

66588301

Consent

Features

  • T-connector for Walraven RapidStrut® rails
  • extra safety by locking notches to prevent turning
  • material: steel 1.0242 (S250GD) + ZM310 MAC
  • product is part of the Walraven Walraven UltraProtect® 1000 system
  • suitable for in- and outdoor applications
  • stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Walraven Strut T-Connector flat BUP 131x80mm
Walraven Strut T-Connector flat BUP 131x80mm
Safe Load Explanation
Walraven Strut T-Connector flat BUP 131x80mm
Walraven Strut T-Connector flat BUP 131x80mm
Safe Load Explanation

Specifications

Walraven RapidStrut® T-Connector (BUP1000)

Identification
Identification
Product Number 66588301

Product Dimensions
Product Dimensions
Height (mm) Ref. letter: h 6.5
Width (mm) Ref. letter: w 40
Length (mm) Ref. letter: l 131
Material Thickness (mm) Ref. letter: MT 4
Heart To Heart Distance (mm) Ref. letter: k 91
Total Height (mm) Ref. letter: H 6.5
Total Width (mm) Ref. letter: W 80
Total Length (mm) Ref. letter: L 131

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Material Steel
Material Quality St. 1.0242
Model Flat coupler
Suitable for C-Profile
Surface Protection BUP1000
Surface Treatment Untreated

Weights
Weights
Weight [g] (g) 268
Weight [kg] (kg) 0.27

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 25
Pack 1 Height (mm) 158
Pack 1 Width (mm) 128
Pack 1 Length (mm) 195
Pack 1 Weight (g) 6775
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 4500
Pack 2 Height (mm) 934
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 1240500
Pack 3 Shape No Pack Type Available

Downloads & certificates

Productsheet H28118 Walraven RapidStrut® T-Connector (BUP1000) PDF | EN | Product info sheet Download
