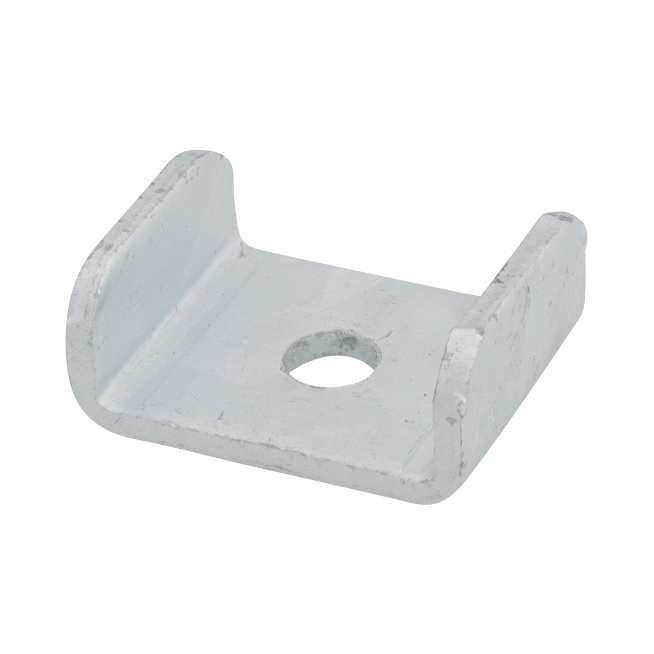

Walraven Strut Washer U BUP 17mm
bored U-plate for protecting rail flanges and anchoring
Features
- U-shaped washer
- U-shaped for extra stability
- material: steel 1.0332
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 66588016 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 22 |
|---|---|
| Total Width (mm) Ref. letter: W | 50 |
| Total Length (mm) Ref. letter: L | 40 |
| Inner Diameter (mm) Ref. letter: ID | 17 |
| Material Thickness (mm) Ref. letter: MT | 4 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Material | Steel |
| Material Quality | St. 1.0332 |
| Suitable for | C-Profile |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 92.5 |
|---|---|
| Weight [kg] (kg) | 0.09 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 158 |
| Pack 1 Width (mm) | 128 |
| Pack 1 Length (mm) | 195 |
| Pack 1 Weight (g) | 4700 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 9000 |
| Pack 2 Height (mm) | 934 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 867000 |
| Pack 3 Shape | No Pack Type Available |
