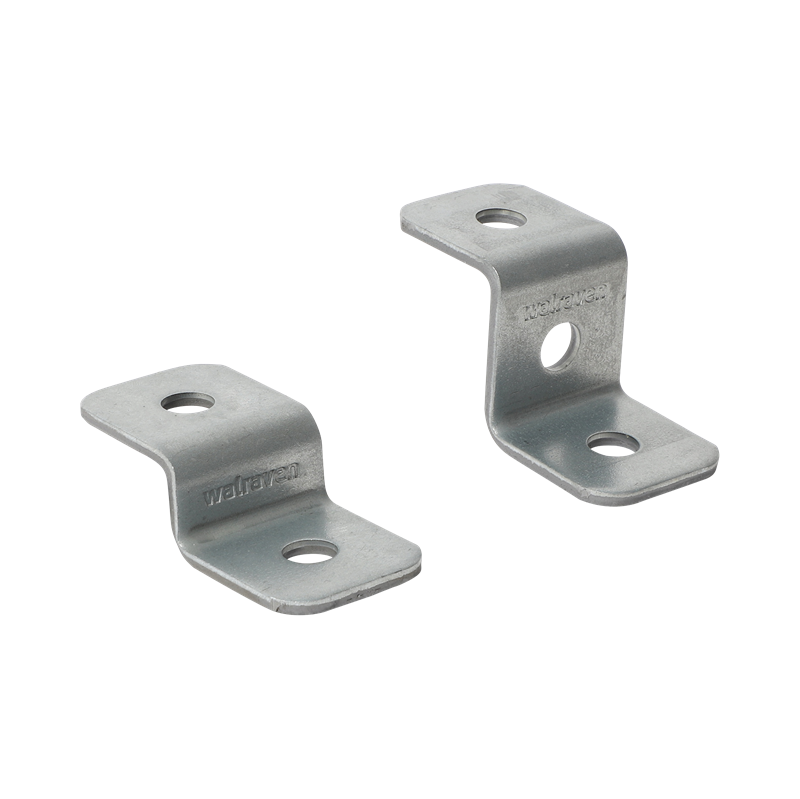

Walraven Strut Z-Bracket BUP 21mm 41x21
to make Strut rail fabrications
Features
- to connect Walraven RapidStrut® rails to wall or ceiling
- connector to make Z-connections between Walraven RapidStrut® rails
- user friendly by rounded edges
- material: steel 1.0242 (S250GD) + ZM310 MAC
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 66588502 |
|---|
Product Dimensions
| Angle (°) Ref. letter: a | 90 |
|---|---|
| Height (mm) Ref. letter: h | 21.5 |
| Length (mm) Ref. letter: l | 86 |
| Material Thickness (mm) Ref. letter: MT | 4 |
| Heart To Heart Distance (mm) Ref. letter: k | 45 |
| Total Height (mm) Ref. letter: H | 25.5 |
| Total Width (mm) Ref. letter: W | 40 |
| Total Length (mm) Ref. letter: L | 86 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Material | Steel |
| Material Quality | St. 1.0242 |
| Model | Z-element |
| Suitable for | C-Profile |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 120 |
|---|---|
| Weight [kg] (kg) | 0.12 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 158 |
| Pack 1 Width (mm) | 128 |
| Pack 1 Length (mm) | 195 |
| Pack 1 Weight (g) | 6075 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 9000 |
| Pack 2 Height (mm) | 934 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 1114500 |
| Pack 3 Shape | No Pack Type Available |
