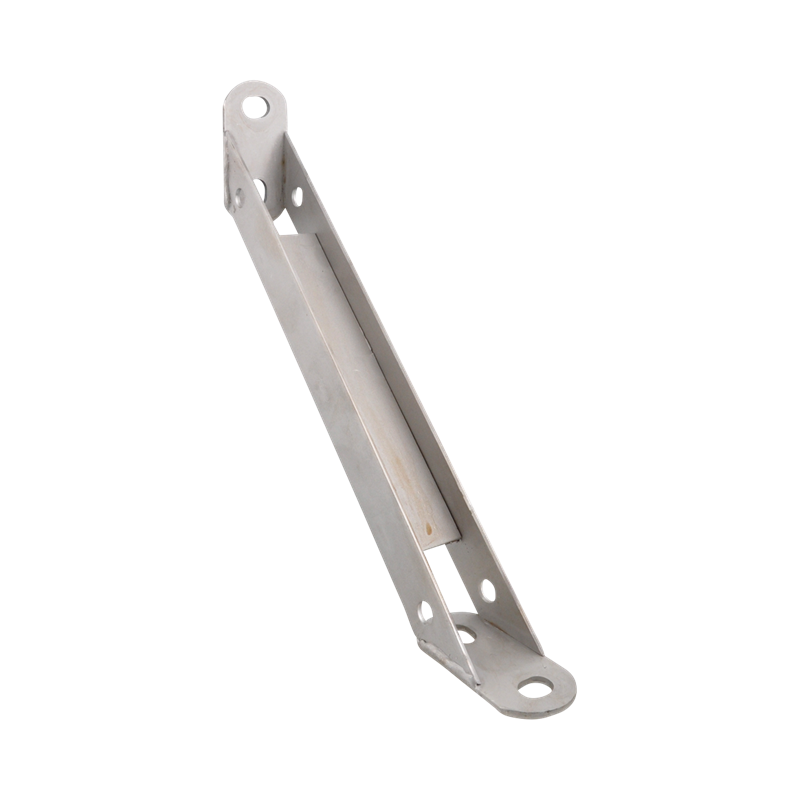

Walraven Rail Prop SSt WM1,15,2,Strut 200mm
reinforcement of cantilever arm
Features
- 45° support bracket
- for fixing support under, top or on side of a cantilever arm
- also used to strengthen rail constructions
- CO2 welded
- material: stainless steel 1.4401 (AISI 316)
Specifications
Identification
| Product Number | 6627220 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 250 |
|---|---|
| Total Width (mm) Ref. letter: W | 40 |
| Total Length (mm) Ref. letter: L | 250 |
| Fixing Hole (mm) Ref. letter: FH | 10.5 |
| Fixing Slot (mm) Ref. letter: FS | 15x11 |
| Angle (°) Ref. letter: a | 45 |
Technical characteristics
| Material | Stainless Steel |
|---|---|
| Material Quality | 1.4401 (AISI 316) |
| Suitable for | C-Profile |
| Surface Protection | Untreated |
| Surface Treatment | Pickled |
Weights
| Weight [g] (g) | 718 |
|---|---|
| Weight [kg] (kg) | 0.72 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 10 |
| Pack 1 Height (mm) | 119 |
| Pack 1 Width (mm) | 264 |
| Pack 1 Length (mm) | 398 |
| Pack 1 Weight (g) | 7394 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 630 |
| Pack 2 Height (mm) | 977 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 486822 |
| Pack 3 Shape | No Pack Type Available |
