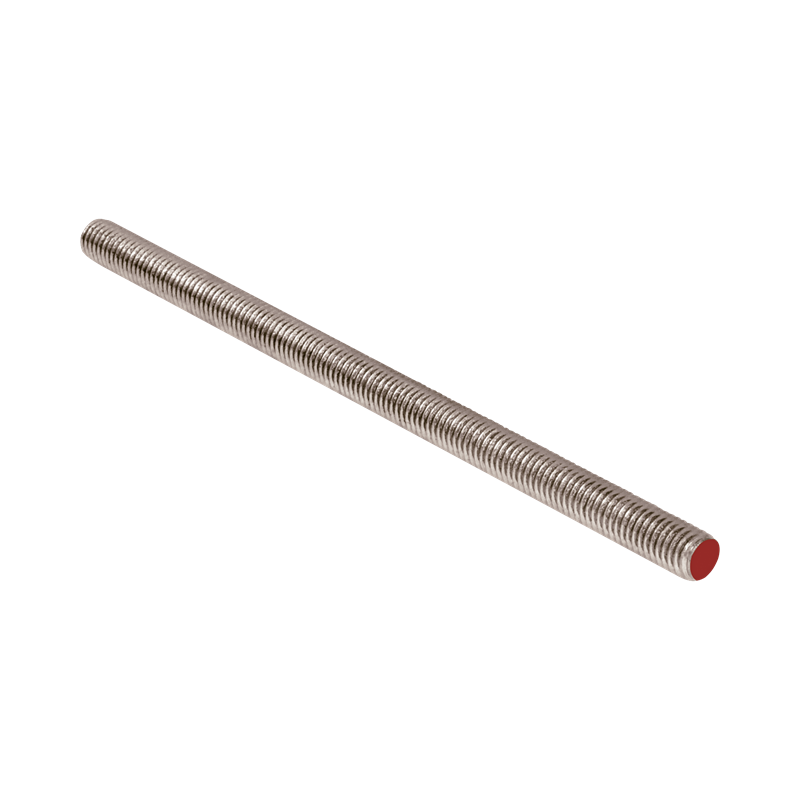

Walraven Threaded Rod SSt DIN976-1 A4-70 M16x1m

for threaded connections, hangers and ties,

63079116 Application: Active fire protection fixings / Sprinkler fixings, Seismic bracings, Stainless Steel

Get project support

Walraven Threaded Rod SSt DIN976-1 A4-70 M16x1m

for threaded connections, hangers and ties,

63079116

Consent

Features

  • according to DIN 976-1
  • material: A4-70 (1.4401/ AISI 316)
  • thread with 60° angle provides best performance

Specifications

Walraven Stainless Steel Threaded Rod A4-70

Identification

Identification
Product Number 63079116

Product Dimensions

Product Dimensions
Thread Size Ref. letter: TS M16
Total Length (mm) Ref. letter: L 1000
Total Height (mm) Ref. letter: H 16
Total Width (mm) Ref. letter: W 16
Thread Pitch (mm) Ref. letter: TP 2

Technical characteristics

Technical characteristics
Norm / Standard DIN 976-1
Colour Stainless Steel
Material Stainless Steel
Material Quality A4-70
Surface Protection Untreated
Surface Treatment Untreated
Thread Direction Right-Handed Thread
Thread Type Ref. letter: TT Metric

Approvals & Declarations

Approvals & Declarations
EN 1363-1 test report No

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 70510

Weights

Weights
Weight [g] (g) 1310
Weight [kg] (kg) 1.31

Packaging information

Packaging information
Pack 1 Shape Bundle
Pack 1 Qty 10
Pack 1 Height (mm) 70
Pack 1 Width (mm) 70
Pack 1 Length (mm) 1000
Pack 1 Weight (g) 13100
Pack 2 Shape No Pack Type Available

Downloads & certificates

Productsheet M9524 Walraven Stainless Steel Threaded Rod A4-70 PDF | EN | Product info sheet Download
