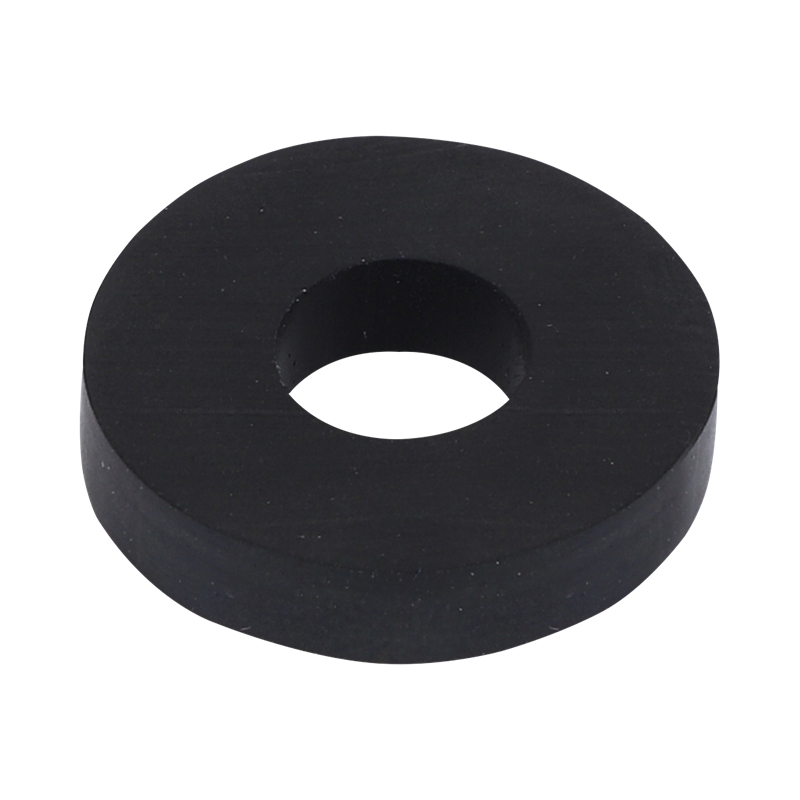

Walraven VibraTek® SA-W Silent Washer 8.5x8mm
silent rubber washer for isolating metal to metal contact
Features
- viscoelastic rubber washers that cushion and prevent transmission of vibroacoustic effects to the structure
- working temperature range -20 ˚C till 90 ˚C
Specifications
Identification
| Product Number | 2801308508 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 8 |
|---|---|
| Total Width (mm) Ref. letter: W | 25 |
| Total Length (mm) Ref. letter: L | 25 |
| Inner Diameter (mm) Ref. letter: ID | 8.5 |
| Outer Diameter (mm) Ref. letter: OD | 25 |
| Material Thickness (mm) Ref. letter: MT | 8 |
Technical characteristics
| Colour | Black |
|---|---|
| Material | Rubber |
| Material Quality | EPDM |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
Approvals & Declarations
| CE mark | No |
|---|---|
| EN 1363-1 test report | No |
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 4.3 |
|---|---|
| Weight [kg] (kg) | 0 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 60 |
| Pack 1 Width (mm) | 220 |
| Pack 1 Length (mm) | 160 |
| Pack 1 Weight (g) | 432 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 500 |
| Pack 2 Height (mm) | 182 |
| Pack 2 Width (mm) | 189 |
| Pack 2 Length (mm) | 239 |
| Pack 2 Weight (g) | 2320 |
| Pack 3 Shape | No Pack Type Available |
