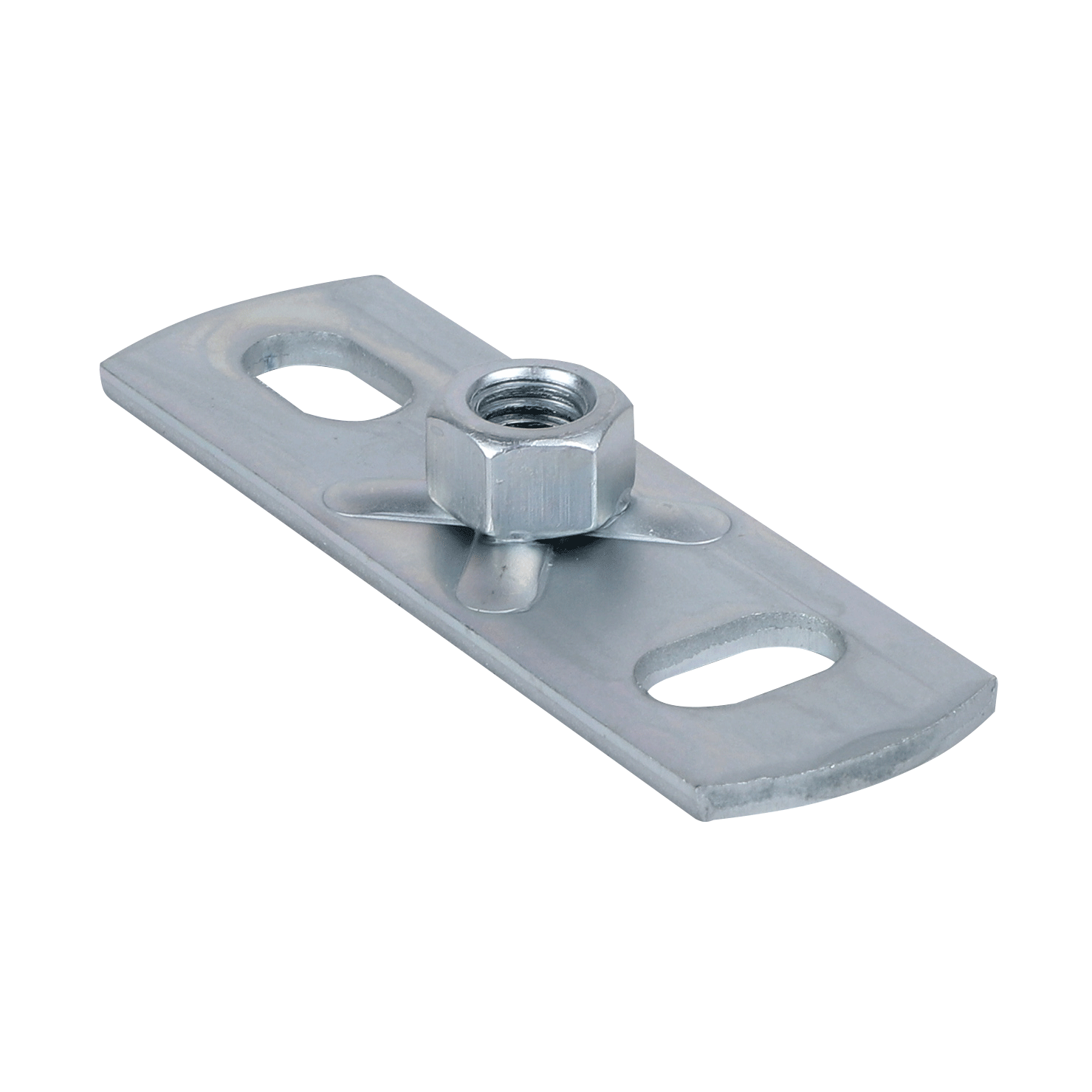

Walraven Wall Plate Resistance Welded (BUP1000)
fixing to wall or ceiling
Savybės
- fixings to ceiling or floor (only tension loads recommended)
- slots at 90° to each other to simplify fixing
- with resistance welded connection nut
- material: steel
- product is part of the Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Straipsniai
| Product Number | Connection Thread | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Fixing Slot 2 | Heart To Heart Distance | Maximum Allowed Load Faz | Išsaugotų straipsnių sąrašas |
|---|---|---|---|---|---|---|---|---|---|---|
| Nuorodos raštas | G | H | W | L | MT | FS | FS 2 | k | Fa,z | |
| Vieneto aprašymas. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
6708008
|
M8 | 12 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 | |
|
6708010
|
M10 | 14 | 25 | 80 | 3 | 15x8.5 | 15x8.5 | 50 | 2500 |
