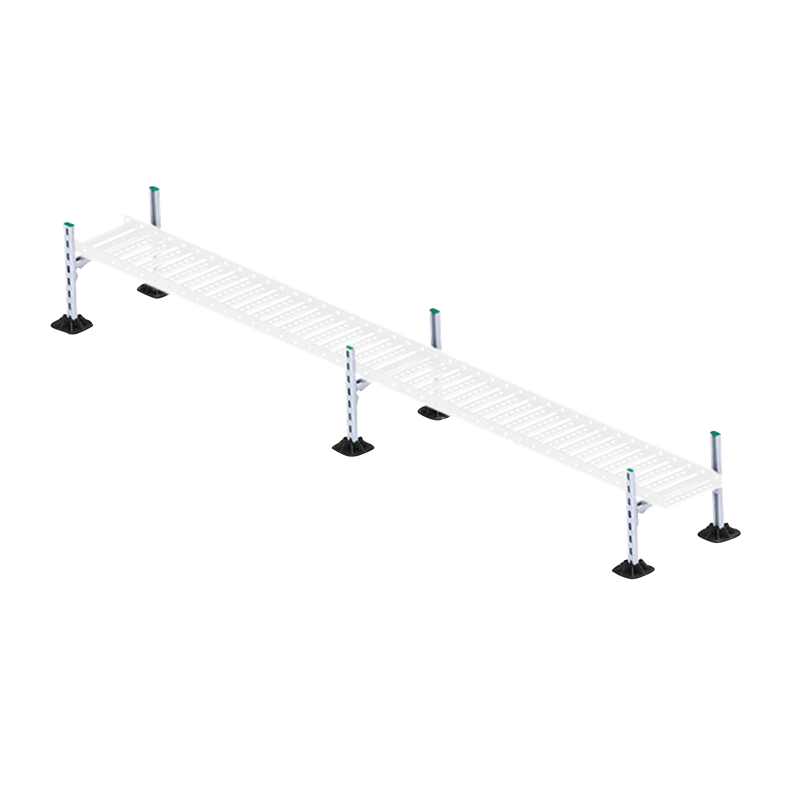

Walraven Yeti® 130 Cable Tray set 6pcs/400
for installation of cable runs on roofs
Features
- complete set for cable run installations on the roof
- flexible and cost-effective solution
- also possible to use for pipes or small air duct channels
- with non-slip anti-vibration mat
- predefined load capacity: calculation not necessary
- mouldings made of WPC, a composite of recycled plastic and wood fibre
- plastic components made from 100% recycled material
- resistant to UV and chemical influences
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
- sound reduction
- UV-resistance according to EN ISO 16474-3:2014-02 - certified by ITB
- The maximum recommended loads are calculated without accounting for wind and snow actions, which can vary significantly depending on local conditions. To ensure safety under typical circumstances, a global safety factor of 2 is applied.
- Before mounting, the roof load capacity has to be confirmed by a structural engineer. If changes to the mounting parameters is necessary then please contact Walraven Technical Department.
Specifications
Identification
| Product Number | 67685534 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 406 |
|---|---|
| Total Width (mm) Ref. letter: W | 135 |
| Total Length (mm) Ref. letter: L | 551 |
| Height (mm) Ref. letter: h | 400 |
| Length (mm) Ref. letter: l | 400 |
Technical characteristics
| Material | Plastic |
|---|---|
| Material Quality | WPC |
| Model | Frame-Set |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Approvals & Declarations
| ISO 10140-1 test report | Yes |
|---|---|
| ISO 10140-3 test report | Yes |
| ISO 16474-3 test report | Yes |
Weights
| Weight [g] (g) | 8291 |
|---|---|
| Weight [kg] (kg) | 8.29 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 1 |
| Pack 1 Height (mm) | 168 |
| Pack 1 Width (mm) | 180 |
| Pack 1 Length (mm) | 400 |
| Pack 1 Weight (g) | 8454 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 60 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 528240 |
| Pack 3 Shape | No Pack Type Available |
