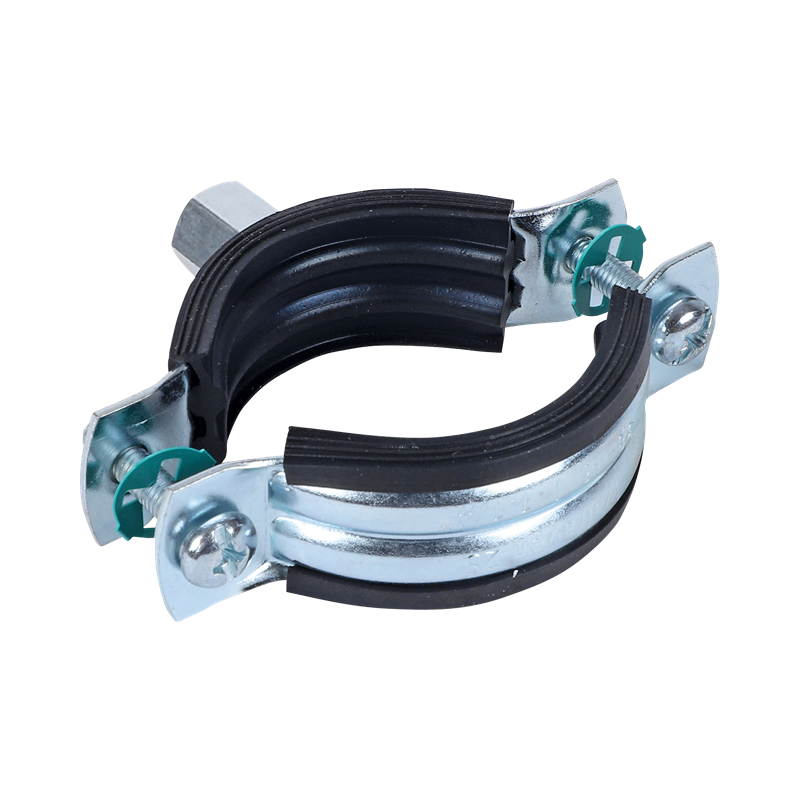

Walraven 2S Clamp zp EPDM M8/10 25-30mm
for steel, copper, cast iron and plastic (multilayer) pipe
Features
- gapless range
- rubber lining grips in steel parts to prevent sliding of the lining
- anti loss washers prevent screws from falling out during installation
- material: steel
- zinc plated
- temperature resistance from -30 °C to +120 °C
- sound insulating lining according DIN 4109
- noise reduction according to ISO 3822-1 up to 22 dB(A)
Specifications
Identification
| Product Number | 33435030 |
|---|---|
| NRF number | 3485519 |
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 25 - 30 |
|---|---|
| DN Ref. letter: DN | DN 20 |
| Pipe Diameter Imperial (in) Ref. letter: D | ¾ |
| Connection Thread Ref. letter: G | M8/M10 |
| Total Height (mm) Ref. letter: H | 58 |
| Total Width (mm) Ref. letter: W | 69 |
| Total Depth (mm) Ref. letter: DtT | 23 |
| Material Thickness (mm) Ref. letter: MT | 1 |
| Material Width (mm) Ref. letter: MW | 20 |
| Screw Size Ref. letter: ds | M5 |
| Connection Height (mm) Ref. letter: Gh | 16 |
| Connection Nut Spanner Width (WAC) (mm) Ref. letter: WAC,cn | 15 |
| Connection Nut Spanner Width (WAF) (mm) Ref. letter: WAF,cn | 13 |
| Effective Rubber Thickness (mm) | 3 |
| Lip Length Left (mm) Ref. letter: Lll | 14.92 |
| Lip Length Right (mm) Ref. letter: Llr | 14.92 |
| Thread Length A (mm) Ref. letter: TLA | 9 |
| Thread Length B (mm) Ref. letter: TLB | 15 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Connection | Female thread |
| Lining | EPDM |
| Lining Damping Value (dB(A)) | 22 |
| Layer Thickness Surface Protection (µm) | 5 |
| Lock Facility | Double screw |
| Material | Steel |
| Material Quality | St. 1.0330 |
| Operating Temperature (°C) | -30 - 120 |
| Suitable for | Steel Tube, Stainless Steel Tube, Copper Tube, Aluminium Tube, Metal Pipes, Thin-walled pipe |
| Suitable For Number Of Pipes | 1 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 2 |
Approvals & Declarations
| CE mark | Yes |
|---|---|
| EN 1363-1 test report | No |
| EPD (Environmental Product Declaration) | Yes |
| European Technical Assessment (ETA) | Yes |
| FM approval | No |
| ISO 3822-1 test report | No |
| RAL quality mark (RAL-GZ 655/B) | Yes |
| RAL quality mark (RAL-GZ 656 - fire) | No |
| UL listing certificate | No |
| ULC listing certificate | No |
| VdS approval | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 330 |
|---|---|
| Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z | 0.33 |
Weights
| Weight [g] (g) | 55 |
|---|---|
| Weight [kg] (kg) | 0.06 |
Packaging information
| Pack 1 GTIN | 08712993560028 |
|---|---|
| Pack 1 Shape | Cardboard Box |
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 105 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 2860 |
| Pack 2 GTIN | 08712993570959 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 7200 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 432984 |
| Pack 3 Shape | No Pack Type Available |
