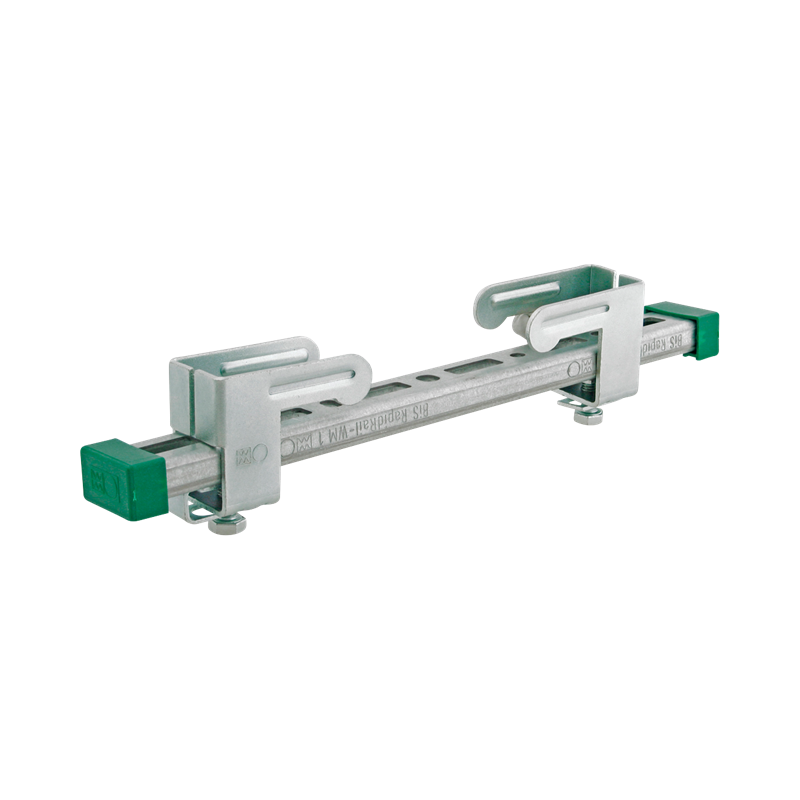

Walraven Rail WM1 Light Duty set 400mm
fixing to steel beam
Features
- for suspension of light components like cable trays, duct work, etc. onto beams without welding or drilling
- up to flange thickness 20 mm
- material: beam clamp made of steel; rail made of steel 1.0242
- beam clamp: zinc plated; rail: pre-galvanized
- consists of: 1 length of rail 30x15 mm, 2 Beam clamps (Part No. 607 1 000), 2 Rail End Caps
- beam clamp also available loose
Specifications
Identification
| Product Number | 6071400 |
|---|
Product Dimensions
| Clamping Range (mm) Ref. letter: CR | 1 - 20 |
|---|---|
| Total Height (mm) Ref. letter: H | 62 |
| Total Width (mm) Ref. letter: W | 36 |
| Total Length (mm) Ref. letter: L | 400 |
| Thread Size Ref. letter: TS | M8 |
| Thread Length (mm) Ref. letter: TL | 16 |
| Width (mm) Ref. letter: w | 31 |
| Material Thickness (mm) Ref. letter: MT | 2.5 |
Technical characteristics
| For Rail Type | 30x15 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 15 |
| Material | Steel |
| Material Quality | St. 1.0226 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 1900 |
|---|
Weights
| Weight [g] (g) | 632 |
|---|---|
| Weight [kg] (kg) | 0.63 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 20 |
| Pack 1 Height (mm) | 101 |
| Pack 1 Width (mm) | 398 |
| Pack 1 Length (mm) | 530 |
| Pack 1 Weight (g) | 13018 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 560 |
| Pack 2 Height (mm) | 952 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 385504 |
| Pack 3 Shape | No Pack Type Available |
