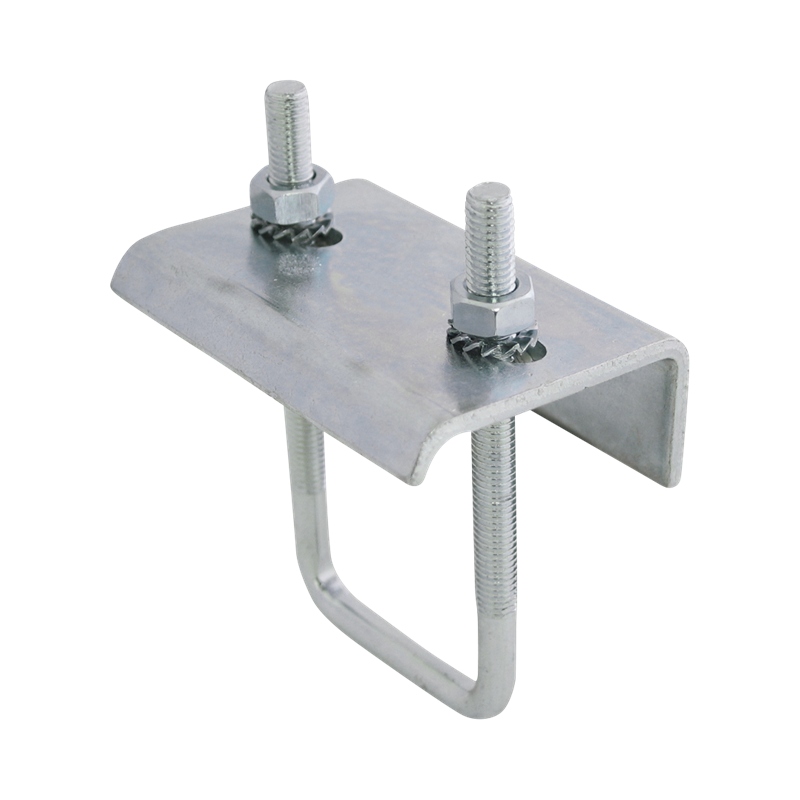

Walraven RapidRail® Beam Clamp zp WM35 M8
fixing to steel beam
Features
- for a solid fixing to steel construction without the need for welding or drilling
- always use 2 beam clamps per fixing
- material: steel
- zinc plated
- Note! Safe load is only per set of beamclamps, per loading situation the max. allowed load of the rail must be calculated.
Specifications
Identification
| Product Number | 6585014 |
|---|
Product Dimensions
| Clamping Range (mm) Ref. letter: CR | 1 - 20 |
|---|---|
| Total Height (mm) Ref. letter: H | 108 |
| Total Width (mm) Ref. letter: W | 80 |
| Total Length (mm) Ref. letter: L | 62 |
| Thread Size Ref. letter: TS | M8 |
| Thread Length (mm) Ref. letter: TL | 80 |
| Width (mm) Ref. letter: w | 44 |
| Material Thickness (mm) Ref. letter: MT | 4 |
Technical characteristics
| For Rail Type | 38x40 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 15 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 2500 |
|---|
Weights
| Weight [g] (g) | 295 |
|---|---|
| Weight [kg] (kg) | 0.3 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 171 |
| Pack 1 Width (mm) | 264 |
| Pack 1 Length (mm) | 398 |
| Pack 1 Weight (g) | 14981 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 2250 |
| Pack 2 Height (mm) | 999 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 695145 |
| Pack 3 Shape | No Pack Type Available |
