Walraven RapidStrut HD Beam Clamp

to connect Strut rails to steel beams

6072002 Product line: Walraven RapidStrut®
Download product sheet

Get project support

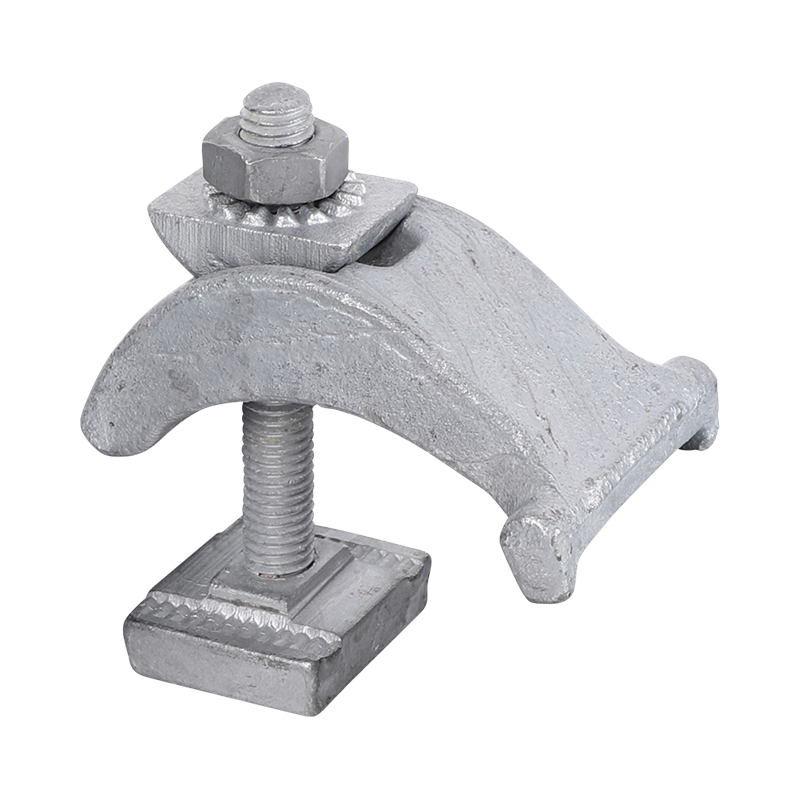

Walraven RapidStrut HD Beam Clamp

to connect Strut rails to steel beams

6072002

Consent

Features

  • solid cast iron beam clamp for suspension of heavy loads onto beams without welding or drilling
  • up to flange thickness 35 mm
  • for fixing of all Walraven RapidStrut® to a steel beam
  • material: steel
  • hot dip galvanized
Walraven RapidStrut HD Beam Clamp
Walraven RapidStrut HD Beam Clamp
Safe Load Explanation
Walraven RapidStrut HD Beam Clamp
Walraven RapidStrut HD Beam Clamp
Safe Load Explanation

Specifications

Walraven RapidStrut® 'Heavy Duty' Beam Clamp

Identification
Identification
Product Number 6072002
NRF number 3485322

Product Dimensions
Product Dimensions
Clamping Range (mm) Ref. letter: CR 1 - 35
Total Height (mm) Ref. letter: H 80
Total Width (mm) Ref. letter: W 52
Total Length (mm) Ref. letter: L 72
Thread Size Ref. letter: TS M10
Thread Length (mm) Ref. letter: TL 63
Width (mm) Ref. letter: w 35
Material Thickness (mm) Ref. letter: MT 9

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x82
Torque Moment For Installation (Nm) Ref. letter: Tinst 30
Material Steel
Material Quality St. 5.4205
Surface Protection Hot Dip Galvanized
Surface Treatment Untreated
Thread Type Ref. letter: TT Metric

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 7800
Maximum Allowed Load Fax (N) Ref. letter: Fa,x 1500

Weights
Weights
Weight [g] (g) 320
Weight [kg] (kg) 0.32

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 25
Pack 1 Height (mm) 105
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 8111
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 1350
Pack 2 Height (mm) 644
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 485000
Pack 3 Shape No Pack Type Available

Downloads & certificates

Product Datasheet H3640 Walraven RapidStrut® 'Heavy Duty' Beam Clamp PDF | EN | Product info sheet Download
