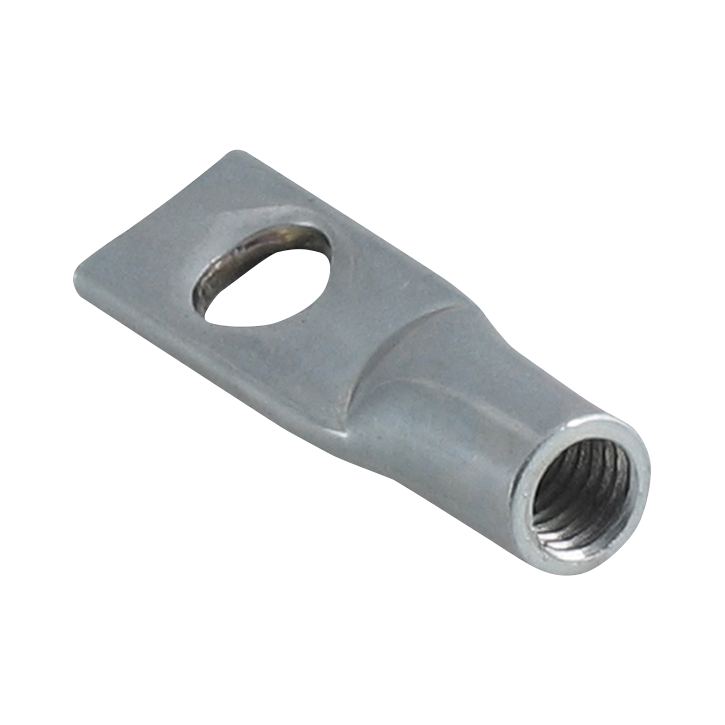

Walraven Suspension Eye zp M12
for angle threaded rod ties and hangers
Features
- closed design to maximize loading
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6803012 |
|---|---|
| NRF number | 1387510 |
Product Dimensions
| Connection Thread Ref. letter: G | M12 |
|---|---|
| Depth (mm) Ref. letter: Dt | 5.5 |
| Fixing Hole (mm) Ref. letter: FH | 10.5 |
| Thread Pitch (mm) Ref. letter: TP | 1.75 |
| Total Depth (mm) Ref. letter: DtT | 15 |
| Total Height (mm) Ref. letter: H | 54 |
| Total Width (mm) Ref. letter: W | 21 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Connection | Female thread |
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Direction | Right-Handed Thread |
| Thread Gender Ref. letter: TG | Female thread |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 7750 |
|---|
Weights
| Weight [g] (g) | 35 |
|---|---|
| Weight [kg] (kg) | 0.04 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 70 |
| Pack 1 Width (mm) | 160 |
| Pack 1 Length (mm) | 160 |
| Pack 1 Weight (g) | 3610 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 500 |
| Pack 2 Height (mm) | 175 |
| Pack 2 Width (mm) | 200 |
| Pack 2 Length (mm) | 266 |
| Pack 2 Weight (g) | 18200 |
| Pack 3 Shape | No Pack Type Available |
