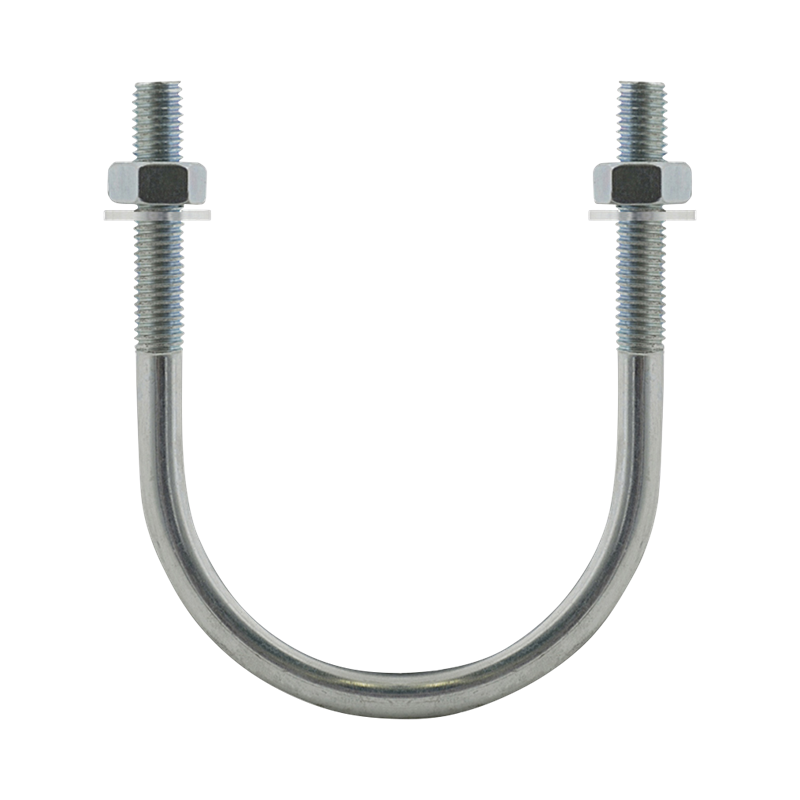

Walraven U-Bolt Clamp zp 5" M10 140mm
for steel pipes
Features
- U-Bolt with thread
- including nuts and washers
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 2084310140 |
|---|---|
| NRF number | 3485621 |
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 140 |
|---|---|
| Pipe Diameter Imperial (in) Ref. letter: D | 5 |
| DN Ref. letter: DN | DN 125 |
| Thread Size Ref. letter: TS | M10 |
| Thread Length (mm) Ref. letter: TL | 55 |
| Total Height (mm) Ref. letter: H | 188 |
| Total Width (mm) Ref. letter: W | 162 |
| Total Depth (mm) Ref. letter: DtT | 17 |
| Heart To Heart Distance (mm) Ref. letter: k | 152 |
| Clamp Center Distance Height (mm) Ref. letter: cdh | 109 |
| Height (mm) Ref. letter: h | 179 |
| Pipe Diameter IPS (in) Ref. letter: D | 5 |
| Thread Pitch (mm) Ref. letter: TP | 1.5 |
| Width (mm) Ref. letter: w | 142 |
| Width Across Flats (mm) Ref. letter: WAF | 17 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | Class 4.8 |
| Number Of Nuts | 2 |
| Number Of Washers? | 2 |
| Suitable for | Steel Tube, Metal Pipes |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
| With Nut? | Yes |
| With Saddle Piece? | No |
| With Washer? | Yes |
Approvals & Declarations
| UL listing certificate | No |
|---|
Weights
| Weight [g] (g) | 248 |
|---|---|
| Weight [kg] (kg) | 0.25 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 20 |
| Pack 1 Height (mm) | 145 |
| Pack 1 Width (mm) | 245 |
| Pack 1 Length (mm) | 190 |
| Pack 1 Weight (g) | 5200 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 1440 |
| Pack 2 Height (mm) | 544 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 395000 |
| Pack 3 Shape | No Pack Type Available |
