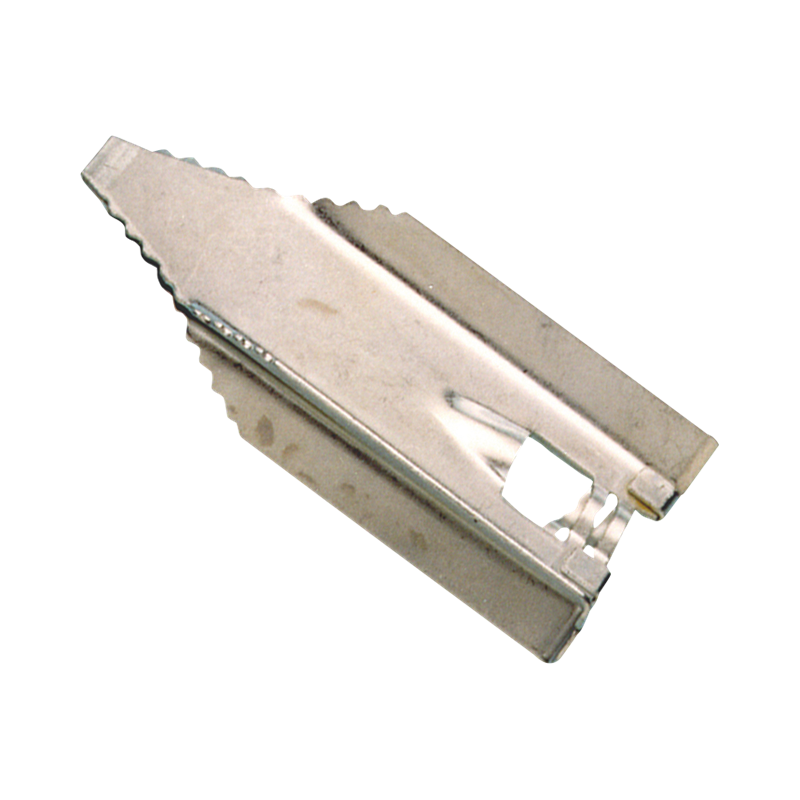

Walraven XL + Screw TF 4.0x50 100/box
fixing to double plaster board
Features
- hammer-in plug
- for heavy applications: pipe fixings, radiators, heaters, airco-units, etc.
- for chipboard screw (Ø 4.0 - 5.0 mm, min. length 45 mm)
- easy and quick to use: no drill, plug anchors itself when tightening the screw, does not rotate on screwing
- better fire resistance than plastic plugs
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6114143 |
|---|---|
| NRF number | 3484076 |
Product Dimensions
| Total Length (mm) Ref. letter: L | 43 |
|---|---|
| Minimum Screw Depth (mm) Ref. letter: ls,min | 45 |
| Screw Size Ref. letter: ds | 4.0 |
| Screw Length (mm) Ref. letter: ls | 50 |
| Suitable For Screw Diameter (mm) | 4 - 5 |
| Total Height (mm) Ref. letter: H | 7 |
| Total Width (mm) Ref. letter: W | 16 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Material | Steel |
| Pre-Positioned Installation? | Yes |
| Push-Through Installation? | No |
| Spaced Installation? | No |
| Suitable for | Plasterboard |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| With Collar? | Yes |
| With Screw? | Yes |
Approvals & Declarations
| EN 1363-1 test report | No |
|---|
Weights
| Weight [g] (g) | 7.5 |
|---|---|
| Weight [kg] (kg) | 0.01 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 70 |
| Pack 1 Width (mm) | 120 |
| Pack 1 Length (mm) | 190 |
| Pack 1 Weight (g) | 845 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 600 |
| Pack 2 Height (mm) | 203 |
| Pack 2 Width (mm) | 150 |
| Pack 2 Length (mm) | 380 |
| Pack 2 Weight (g) | 4645 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 33600 |
| Pack 3 Height (mm) | 965 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 330452 |
| Pack 4 Shape | No Pack Type Available |
