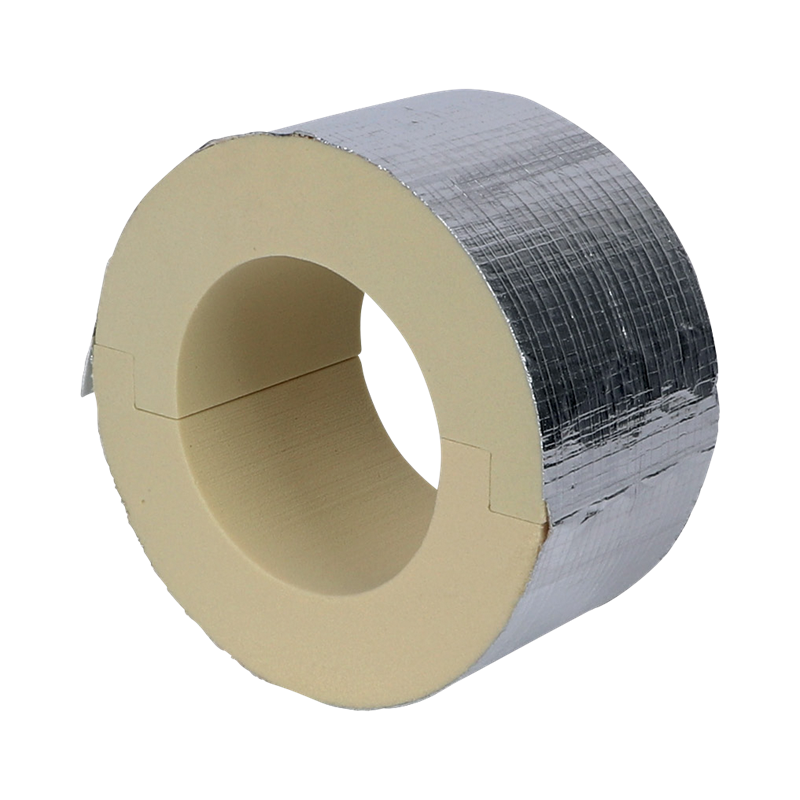

Walraven BISOFIX® PIR50
for insulated pipes
Features
- for combination with rigid foam insulation
- cover joints with aluminium tape
- does not contain CFC, HCFC, formaldehyde or cadmium
- fire class B2
- PIR density for D <110mm = 80kg/m³
- PIR density for D >110mm = 120kg/m³
- thermal conductivity lambda (approx. value): 0.030 W/(mK)
- temperature range -45 °C - +105 °C
Articole
| Product Number | Outside Pipe Diameter | DN | Total Height | Total Width | Total Length | Material Thickness | Operating Temperature | Maximum Allowed Load Faz | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | DN | H | W | L | MT | Fa,z | ||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (°C) | (N) | ||
I500000034
|
33.7 | - | 135 | 135 | 75 | 50 | -45 - 105 | 370 | |
|
I500000060
|
60.3 | DN 50 | 160 | 160 | 75 | 50 | -45 - 105 | 540 | |
|
I500000064
|
64 | - | 164 | 164 | 75 | 50 | -45 - 105 | 550 | |
|
I500000076
|
76.1 | DN 65 | 176 | 176 | 75 | 50 | -45 - 105 | 650 | |
|
I500000089
|
88.9 | DN 80 | 189 | 189 | 75 | 50 | -45 - 105 | 690 | |
|
I500000114
|
114.3 | DN 100 | 214 | 214 | 100 | 50 | -45 - 105 | 1680 | |
|
I500000133
|
133 | - | 233 | 233 | 100 | 50 | -45 - 105 | 2780 | |
|
I500000140
|
139.7 | DN 125 | 240 | 240 | 100 | 50 | -45 - 105 | 2860 | |
|
I500000160
|
159 | - | 260 | 260 | 100 | 50 | -45 - 105 | 3090 | |
|
I500000168
|
168.3 | DN 150 | 268 | 268 | 100 | 50 | -45 - 105 | 3200 | |
|
I500000219
|
219.1 | DN 200 | 319 | 319 | 150 | 50 | -45 - 105 | 4810 | |
|
I500000273
|
273.1 | - | 373 | 373 | 150 | 50 | -45 - 105 | 5620 | |
|
I500000324
|
323.9 | - | 424 | 424 | 150 | 50 | -45 - 105 | 6390 | |
|
I500000406
|
406.4 | - | 506 | 506 | 150 | 50 | -45 - 105 | 6410 |
