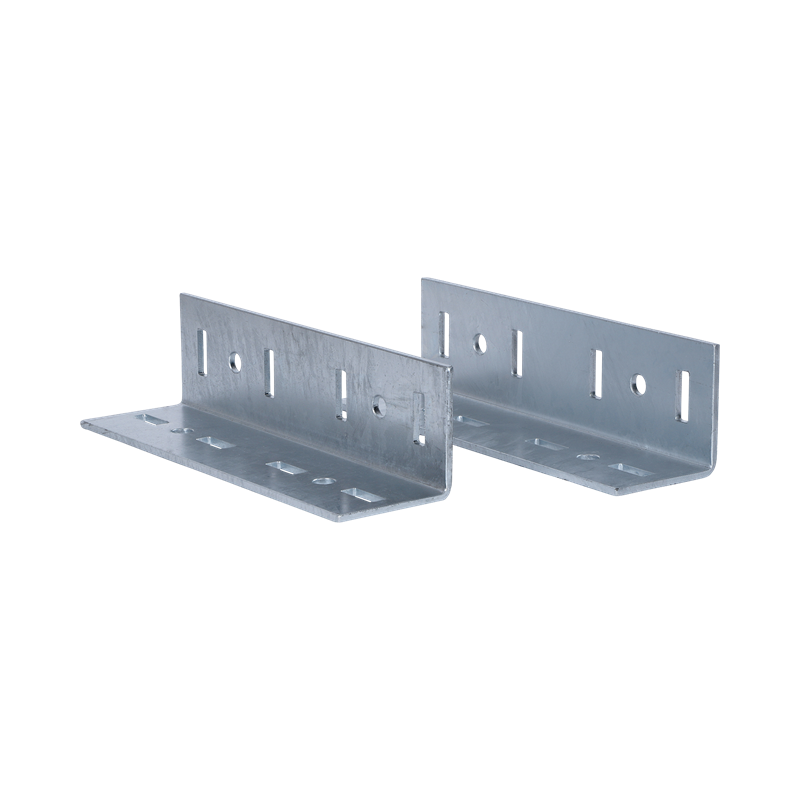

Walraven Maxx Linear Connector Set
to make Maxx rail fabrications
Features
- for linear connection of Maxx profiles type MX100 and MX120
- to be used in pairs
- delivery and assembly always in pairs (1 piece = set of 2)
- material: steel S235JR
- hot dip galvanized
Articole
| Product Number | For Rail Type | Model | Angle | Width | Material Thickness | Heart To Heart Distance | Torque Moment For Installation | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|---|
| Ref. letter | a | w | MT | k | Tinst | |||
| Unit desc. | (°) | (mm) | (mm) | (mm) | (Nm) | |||
6589310
|
80x80, 100x100, 100x120, 100x150 | Exterior coupler | 90 | 94 | 8 | 50 | 75 |
