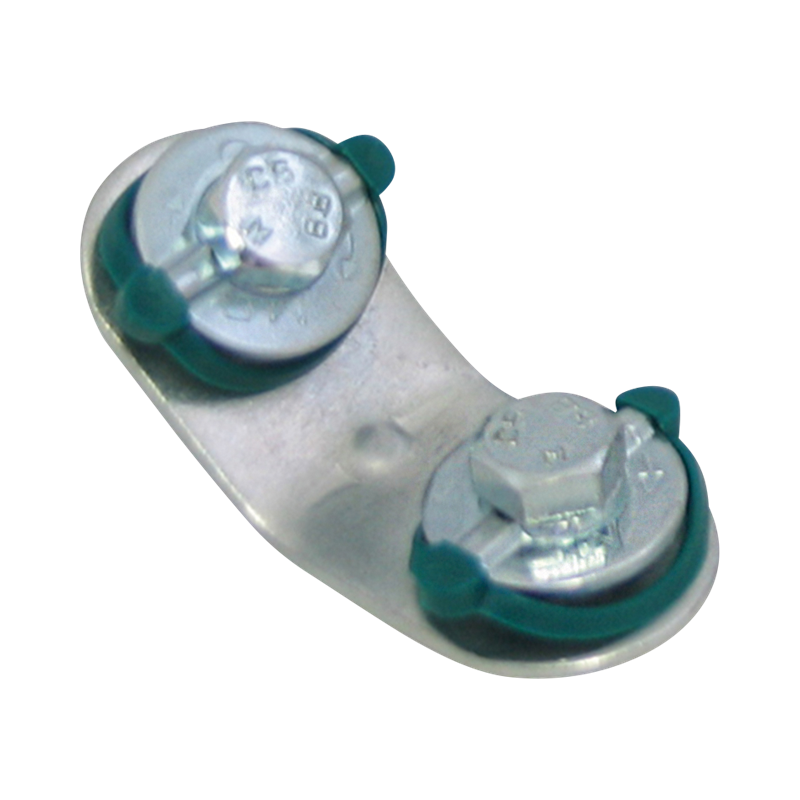

Walraven RapidRail® Connector 135° (S/S)
to make Walraven RapidRail® fabrications
Features
- connector with pre-assembled Walraven RapidRail® Slide nut(s)
- to make rail fabrications
- suitable for rails 27x18, 30x15, 30x20, 30x30, 30x45, 38x40
- ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
- material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
- zinc plated
- For detailed technical information about our RAL marked products, please see the RAL datasheet in our web catalogue.
Articole
| Product Number | For Rail Type | Model | Angle | Width | Material Thickness | Heart To Heart Distance | Torque Moment For Installation | Maximum Allowed Load Faz | Maximum Allowed Load Fax | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | a | w | MT | k | Tinst | Fa,z | Fa,x | |||
| Unit desc. | (°) | (mm) | (mm) | (mm) | (Nm) | (N) | (N) | |||
6584053
|
27x18, 30x15, 30x20, 30x30, 30x45, 38x40 | Angle | 135 | 30 | 3 | 0 | 15 | 1336 | 448 |
