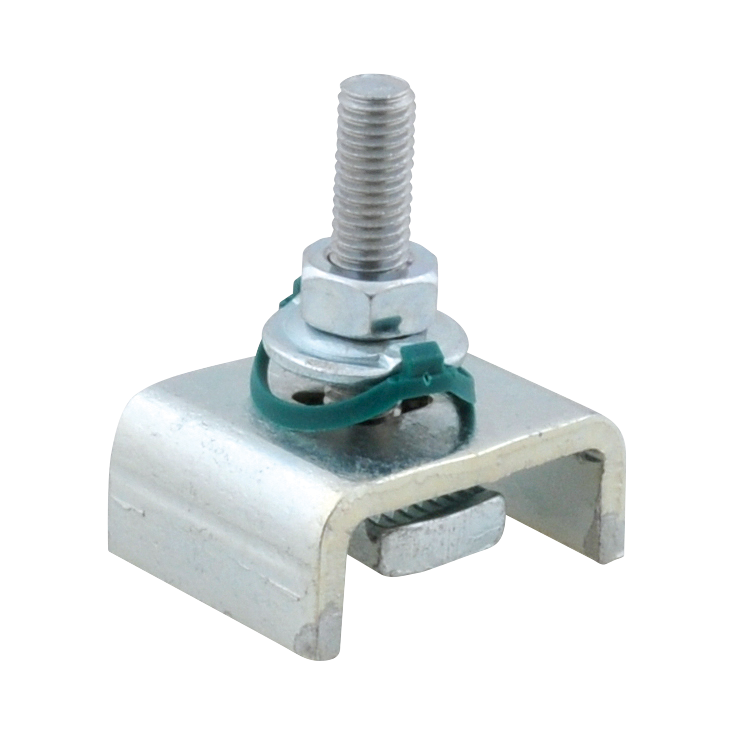

Walraven RapidStrut® Hammerfx U G2BUP M10x60mm

for quick connection of clamps to the rail

665285006 Product line: Walraven RapidStrut®

Features

slide nut with stud bolt, U-shaped washer and Walraven RapidStrut® spring
U-shaped for extra stability
ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
visual guide to check the position of the slide nut
material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
product is part of the Walraven Walraven UltraProtect® 1000 system
suitable for in- and outdoor applications
stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227

Identification
Product Number	665285006

Product Dimensions
Thread Size Ref. letter: TS	M10
Thread Length (mm) Ref. letter: TL	60
Usable Length (mm) Ref. letter: LU	30
Material Thickness (mm) Ref. letter: MT	5
Total Height (mm) Ref. letter: H	65
Total Width (mm) Ref. letter: W	52
Total Depth (mm) Ref. letter: DtT	41
Connection Hole (mm) Ref. letter: CH	10.5
Material Thickness 2 (mm) Ref. letter: MT 2	3
Thread Pitch (mm) Ref. letter: TP	1.5
Width (mm) Ref. letter: w	42

Technical characteristics
For Rail Type	41x21, 41x41, 41x51, 41x62, 41x82
Torque Moment For Installation (Nm) Ref. letter: Tinst	15
Material	Steel
Material Quality	St. 1.0332
Surface Protection	BUP1000
Surface Treatment	Untreated
Thread Type Ref. letter: TT	Metric

Approvals & Declarations
CE mark	No
EN 1363-1 test report	No
European Technical Assessment (ETA)	No
UPC listing certificate	No

Safeloading
Maximum Allowed Load Fax (N) Ref. letter: Fa,x	1250
Maximum Allowed Load Faz (N) Ref. letter: Fa,z	10000

Weights
Weight [g] (g)	220
Weight [kg] (kg)	0.22
