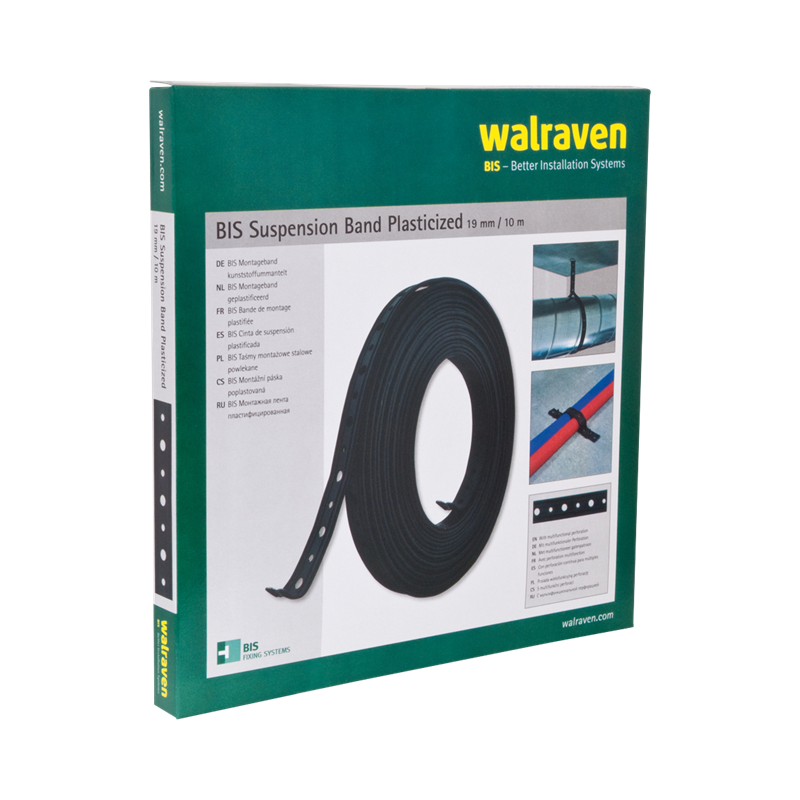

Walraven Suspension Band - Plasticized
fixing of pipes and air ducts
Features
- with continuous perforation
- material: steel, PVC coated
- pre-galvanized, plasticized
Articole
| Product Number | Total Height | Total Width | Total Length | Material Thickness | Perforation Diameter | Perforation Diameter 2 | Heart To Heart Distance | Maximum Allowed Load Faz | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | H | W | L | MT | PD | PD 2 | k | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |
0832019
|
3 | 19 | 10000 | 3 | 6.5 | 4.5 | 15 | 1230 | |
|
0832719
|
3 | 19 | 10000 | 3 | 6.5 | 4.5 | 16 | 1230 | |
|
0832714
|
3 | 14 | 10000 | 3 | 4.5 | - | 15 | 880 | |
|
0832728
|
3 | 26 | 10000 | 3 | 8.5 | - | 15 | 1260 |
