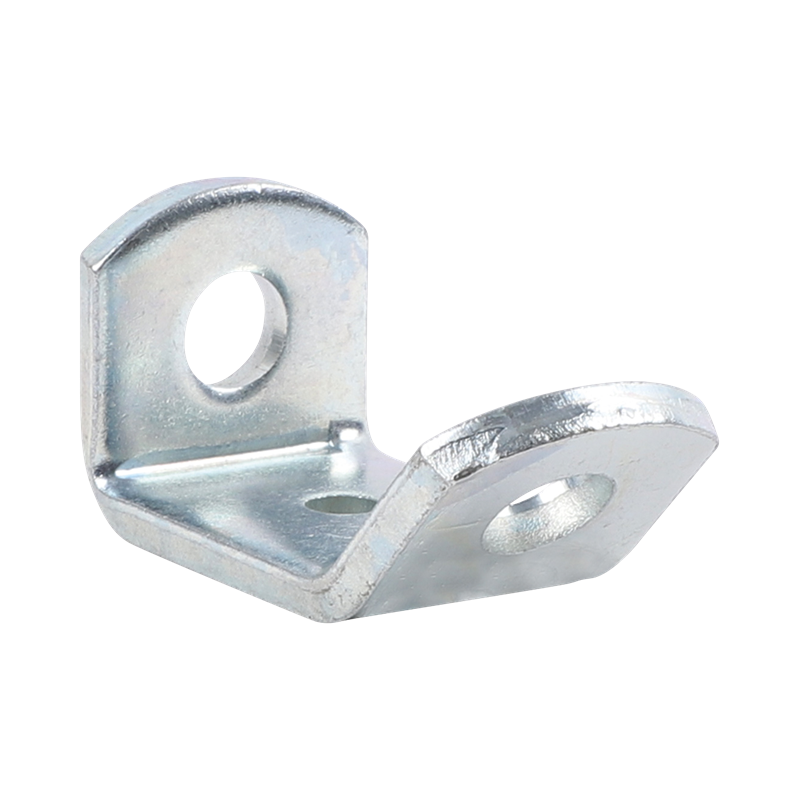

Walraven Threaded Rod Support
for diagonal ties 45 deg
Features
- for strengthening rail constructions with the aid of threaded rods
- also suitable for bracing cantilever arms
- material: steel 1.0332
- zinc plated
- max. allowed load (Fa,z) under an angle of 45°
Articole
| Product Number | Length | Length 2 | Length 3 | Material Thickness | Fixing Hole | Fixing Hole 2 | Fixing Hole 3 | Angle | Angle 2 | Total Height | Total Width | Total Depth | Maximum Allowed Load Faz | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | l | l 2 | l 3 | MT | FH | FH 2 | FH 3 | a | a 2 | H | W | DtT | Fa,z | |
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (°) | (mm) | (mm) | (mm) | (mm) | (N) | |
6698013
|
31 | 31 | 42 | 6 | 13 | 13 | 8 | 45 | 90 | 63 | 74 | 35 | 3000 |
