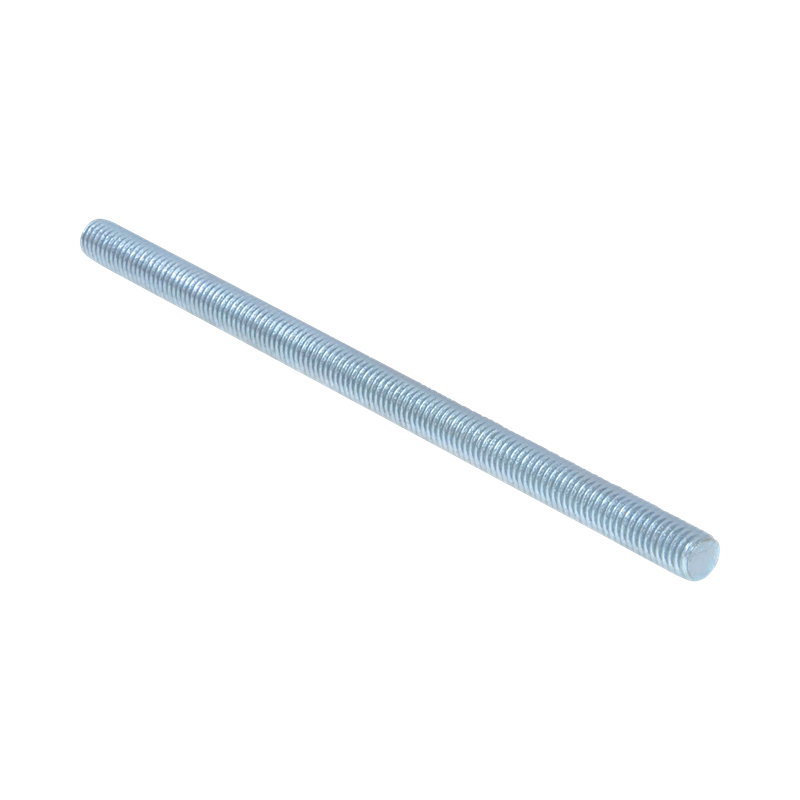

Walraven Threaded Rod
for threaded connections, hangers and ties,
Features
- according to DIN 976-1
- material: steel, strength class 4.8
- zinc plated
- thread with 60° angle provides best performance
- M10 and M12 tested for fire safety according to EN 1363-1
- M7B: pitch = M7 x 1 mm
- M7F: pitch = M7 x 1.5 mm
Articole
| Product Number | Norm / Standard | Thread Size | Total Length | Total Height | Total Width | Maximum Allowed Load Faz | Lista articolelor salvate |
|---|---|---|---|---|---|---|---|
| Ref. letter | TS | L | H | W | Fa,z | ||
| Unit desc. | (mm) | (mm) | (mm) | (N) | |||
6303006
|
DIN 976-1 | M6 | 1000 | 6 | 6 | 6230 | |
|
6303206
|
DIN 976-1 | M6 | 2000 | 6 | 6 | 6230 | |
|
6303306
|
DIN 976-1 | M6 | 3000 | 6 | 6 | 6230 | |
|
6303008
|
DIN 976-1 | M8 | 1000 | 8 | 8 | 11400 | |
|
6303208
|
DIN 976-1 | M8 | 2000 | 8 | 8 | 11400 | |
|
6303308
|
DIN 976-1 | M8 | 3000 | 8 | 8 | 11400 | |
|
6303010
|
DIN 976-1 | M10 | 1000 | 10 | 10 | 18000 | |
|
6303210
|
DIN 976-1 | M10 | 2000 | 10 | 10 | 18000 | |
|
6303310
|
DIN 976-1 | M10 | 3000 | 10 | 10 | 18000 | |
|
6303012
|
DIN 976-1 | M12 | 1000 | 12 | 12 | 26100 | |
|
6303212
|
DIN 976-1 | M12 | 2000 | 12 | 12 | 26100 | |
|
6303312
|
DIN 976-1 | M12 | 3000 | 12 | 12 | 26100 | |
|
6303016
|
DIN 976-1 | M16 | 1000 | 16 | 16 | 48700 | |
|
6303216
|
DIN 976-1 | M16 | 2000 | 16 | 16 | 48700 | |
|
6303020
|
DIN 976-1 | M20 | 1000 | 20 | 20 | 76000 |
