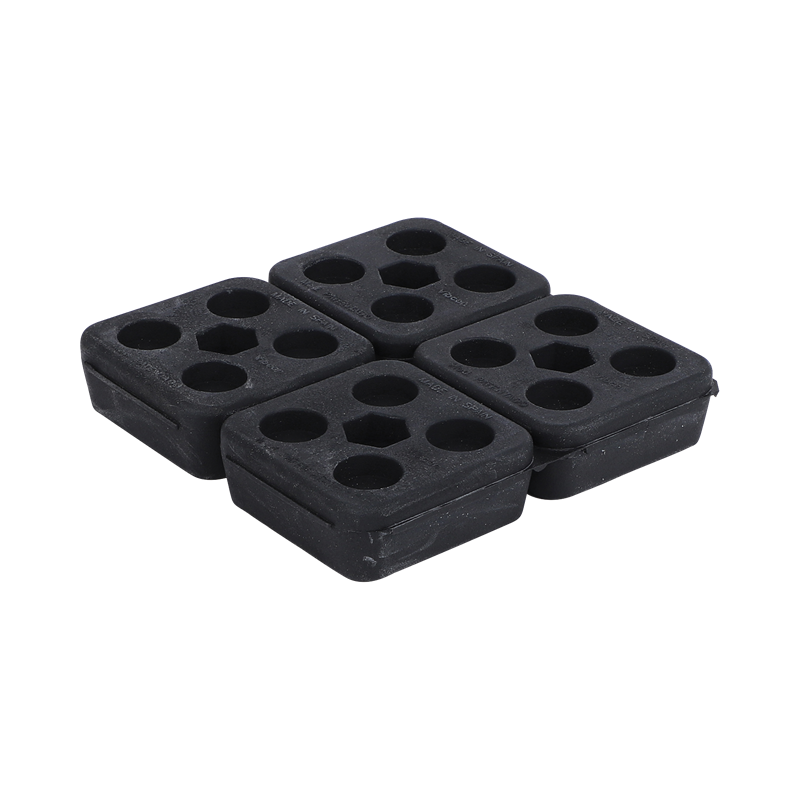

Walraven VibraTek® PR-T Rubber Tile Pad 400x400mm
a versatile rubber tile pad for general vibroacoustic isolation applications
Features
- ideal for use as an elastic isolating support for equipment and metal structures
- individual 50x50mm pieces can be easily cut to form required support shape
- transforms to elastic base support when used with a M8 hexagon head screw
- reusable in the event of machine relocation
- simple to cut and install
- supplied as a mat of 64 blocks (8x8) joined by a membrane
- Hardness 45 Shore A
- see Product Data Sheet for further technical information
- Working temperature range -20 ˚C till 90 ˚C
- material: NR (natural rubber)
Specifications
Identification
| Product Number | 2801200400 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 18 |
|---|---|
| Total Width (mm) Ref. letter: W | 411 |
| Total Length (mm) Ref. letter: L | 411 |
| Tile Length (mm) Ref. letter: TiL | 50 |
| Tile Width (mm) Ref. letter: TiW | 50 |
Technical characteristics
| Colour | Black |
|---|---|
| Material | Rubber |
| Material Quality | NR |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 2780 |
|---|---|
| Weight [kg] (kg) | 2.78 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 5 |
| Pack 1 Height (mm) | 90 |
| Pack 1 Width (mm) | 400 |
| Pack 1 Length (mm) | 400 |
| Pack 1 Weight (g) | 13900 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 170 |
| Pack 2 Height (mm) | 540 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 493600 |
| Pack 3 Shape | No Pack Type Available |
