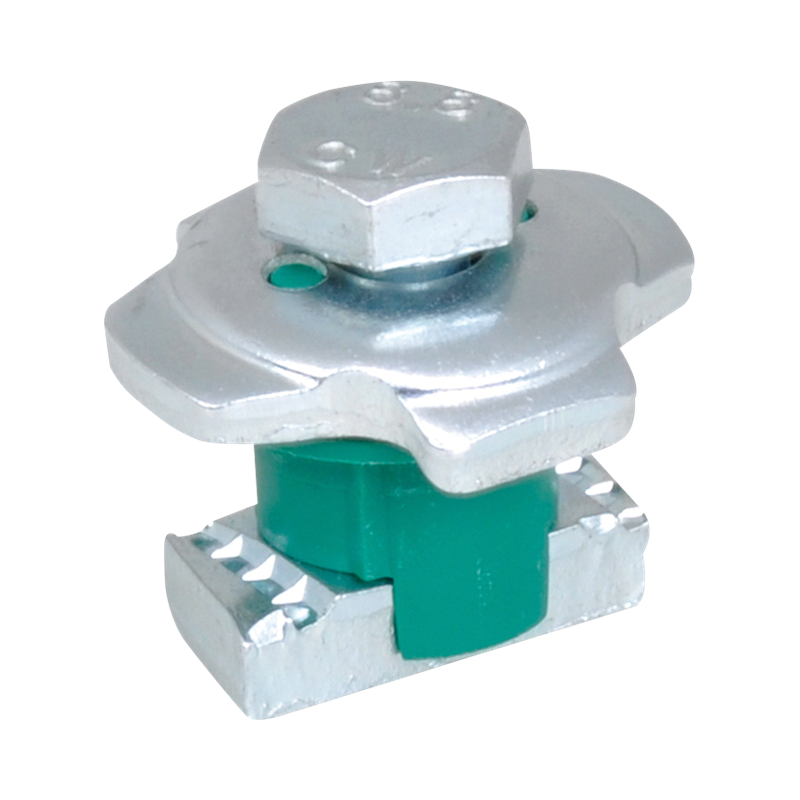

Walraven PushStrut Connector Button Q QN41 M10

for easy installation of complex rail constructions

66519910

Consent

Funktioner

  • universal button: easily combined with all common Walraven RapidStrut® profiles and all Walraven PushStrut Connectors
  • teeth with force fit connections offer more stability
  • timesaving and flexible
  • easy to remove and reusable
  • 3D constructions due to 3D Connectors
  • material: steel
  • zinc plated
  • The max. allowed load Faz in the table refers to rails and cantilever arms with a material thickness of 2.5 mm.
  • The Faz at a thickness of 2.0 mm profile thickness = 4,500 N.
  • The Faz at a thickness of 1.5 mm profile thickness = 3,500 N.
Walraven PushStrut Connector Button Q QN41 M10
Walraven PushStrut Connector Button Q QN41 M10
Walraven PushStrut Connector Button Q QN41 M10
Walraven PushStrut Connector Button Q QN41 M10

Specifikationer

Walraven PushStrut Button

Identification
Identification
Product Number 66519910
VVS Number 18065610

Product Dimensions
Product Dimensions
Thread Size Ref.brev: TS M10
Material Thickness (mm) Ref.brev: MT 8
Total Height (mm) Ref.brev: H 37.72
Total Width (mm) Ref.brev: W 40
Total Depth (mm) Ref.brev: DtT 35.6
Thread Pitch (mm) Ref.brev: TP 1.5
Width (mm) Ref.brev: w 35.6

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Torque Moment For Installation (Nm) Ref.brev: Tinst 40
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated
Thread Type Ref.brev: TT Metric

Approvals & Declarations
Approvals & Declarations
CE mark No
EN 1363-1 test report No
European Technical Assessment (ETA) No
UPC listing certificate No

Safeloading
Safeloading
Maximum Allowed Load Fax (N) Ref.brev: Fa,x 3000
Maximum Allowed Load Faz (N) Ref.brev: Fa,z 5000

Weights
Weights
Weight [g] (g) 83
Weight [kg] (kg) 0.08

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 50
Pack 1 Height (mm) 70
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 4250
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 10800
Pack 2 Height (mm) 984
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 939000
Pack 3 Shape No Pack Type Available

Downloads og certifikater

Productsheet H2905 Walraven PushStrut Button PDF | EN | Product info sheet Download
