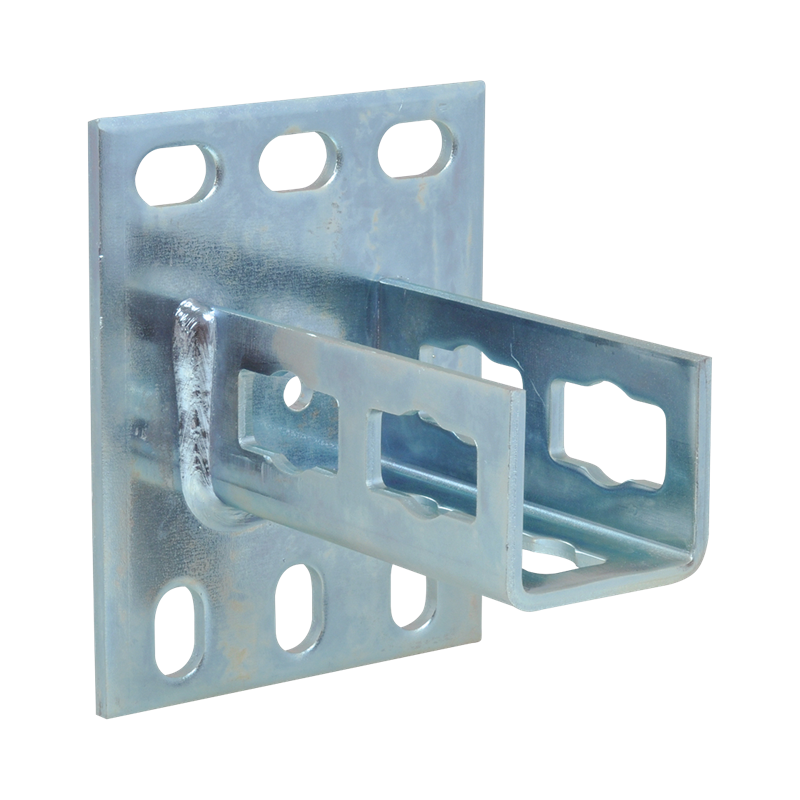

Walraven Strut Wall Plate Q 41/52/62

for easy installation of complex rail constructions

6594035

Consent

Funktioner

  • easily combined with all common Walraven RapidStrut® profiles
  • stable connection of rails to the floor, ceiling or wall
  • timesaving and flexible
  • easy to remove and reusable
  • material: steel
  • zinc plated
Walraven Strut Wall Plate Q 41/52/62
Walraven Strut Wall Plate Q 41/52/62
Walraven Strut Wall Plate Q 41/52/62
Walraven Strut Wall Plate Q 41/52/62

Specifikationer

Walraven PushStrut Wallplate

Identification
Identification
Product Number 6594035
VVS Number 18041182

Product Dimensions
Product Dimensions
Total Height (mm) Ref.brev: H 130
Total Width (mm) Ref.brev: W 100
Total Length (mm) Ref.brev: L 113
Width (mm) Ref.brev: w 42
Height (mm) Ref.brev: h 40
Length (mm) Ref.brev: l 108
Heart To Heart Distance (mm) Ref.brev: k 62
Heart To Heart Distance 3 (mm) Ref.brev: k 3 100
Anchoring Slot (mm) Ref.brev: AS 20x12.5
Fixing Hole (mm) Ref.brev: FH 21.3
Material Thickness (mm) Ref.brev: MT 5
Fixing Slot (mm) Ref.brev: FS 20x12.5

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated

Approvals & Declarations
Approvals & Declarations
EN 1363-1 test report No

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref.brev: Fa,z 3000

Weights
Weights
Weight [g] (g) 752
Weight [kg] (kg) 0.75

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 10
Pack 1 Height (mm) 175
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 7659
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 900
Pack 2 Height (mm) 1019
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 710310
Pack 3 Shape No Pack Type Available

Downloads og certifikater

Productsheet H2928 Walraven PushStrut Wallplate PDF | EN | Product info sheet Download
