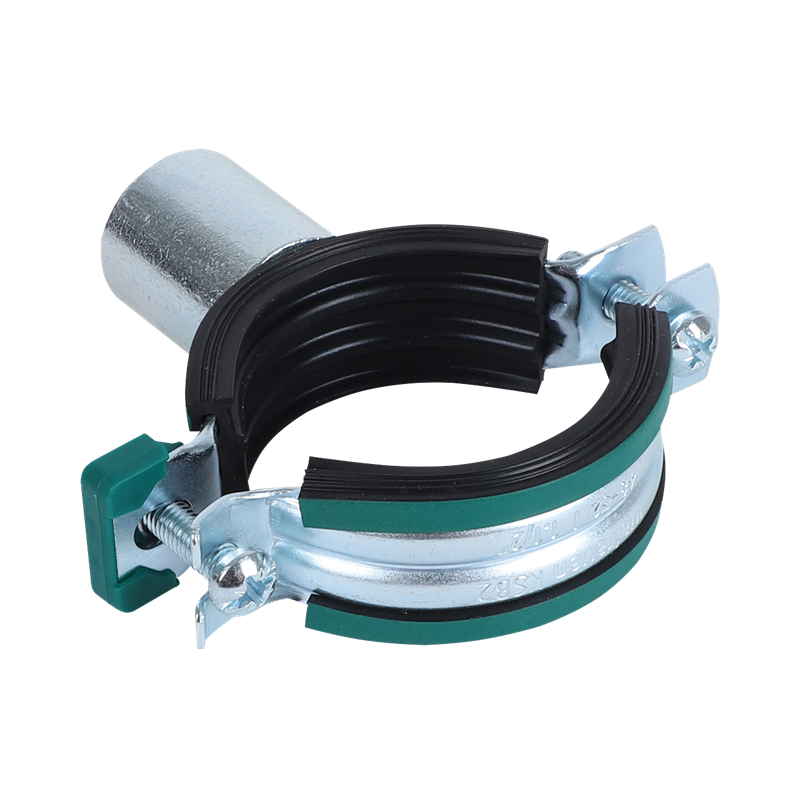

Walraven KSB2 Clamp (M8/M10/½")
for steel, copper, cast iron and plastic (multilayer) pipe
Features
- two-screw clamp with a triple connection nut
- quick closing mechanism for easy locking of the clamp with one hand
- full range from 10 to 225 mm
- the triple connection nut with M8/M10/G½“ internal thread can be converted into a connection nut with M8/M10 internal thread and ½“ external thread by unscrewing the sleeve
- material: steel
- zinc plated
- temperature resistance from -30 °C to +120 °C
- sound insulating lining according DIN 4109
- noise reduction according to ISO 3822-1 up to 21 dB(A)
Članci
| Product Number | Outside Pipe Diameter | DN | Pipe Diameter Imperial | Connection Thread | Total Height | Total Width | Total Depth | Material Thickness | Material Width | Screw Size | Maximum Allowed Load Faz | Approvals | Popis spremljenih članaka |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | DN | D | G | H | W | DtT | MT | MW | ds | Fa,z | ||
| Unit desc. | (mm) | (in) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||||
33965225
|
219 - 225 | DN 200 | 8 | M8/M10/G½” | 273 | 279 | 27 | 2.5 | 25 | M8 | 2390 | EPD |
