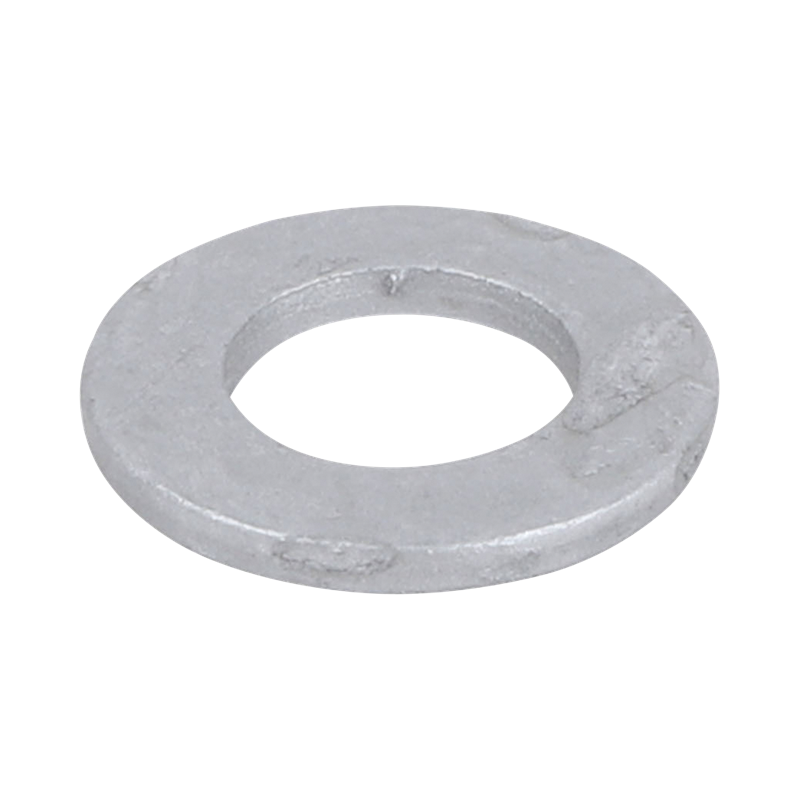

Walraven Washer BUP ISO 7089 17.0/30mm

65381316

Get project support

Walraven Washer BUP ISO 7089 17.0/30mm

65381316

Consent

Features

  • according to EN-ISO 7089 (was DIN 125A)
  • material: steel 1.0332
  • product is part of the Walraven Walraven UltraProtect® 1000 system
  • suitable for in- and outdoor applications
  • stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
  • tested for fire safety

Specifications

Walraven Washer (BUP1000)

Identification

Identification
Product Number 65381316

Product Dimensions

Product Dimensions
Total Height (mm) Ref. letter: H 3
Total Width (mm) Ref. letter: W 30
Total Length (mm) Ref. letter: L 30
Inner Diameter (mm) Ref. letter: ID 17
Outer Diameter (mm) Ref. letter: OD 30
Material Thickness (mm) Ref. letter: MT 3

Technical characteristics

Technical characteristics
For Rail Type 27x18, 30x15, 30x20, 30x30, 38x40
Material Steel
Material Quality St. 1.0332
Surface Protection BUP1000
Surface Treatment Untreated

Approvals & Declarations

Approvals & Declarations
CE mark No
EN 1363-1 test report No
European Technical Assessment (ETA) No

Weights

Weights
Weight [g] (g) 11
Weight [kg] (kg) 0.01

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 200
Pack 1 Height (mm) 50
Pack 1 Width (mm) 120
Pack 1 Length (mm) 180
Pack 1 Weight (g) 2230
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 2000
Pack 2 Height (mm) 300
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 42300
Pack 3 Shape No Pack Type Available

Downloads & certificates

Productsheet K4529 Walraven Washer (BUP1000) PDF | EN | Product info sheet Download
