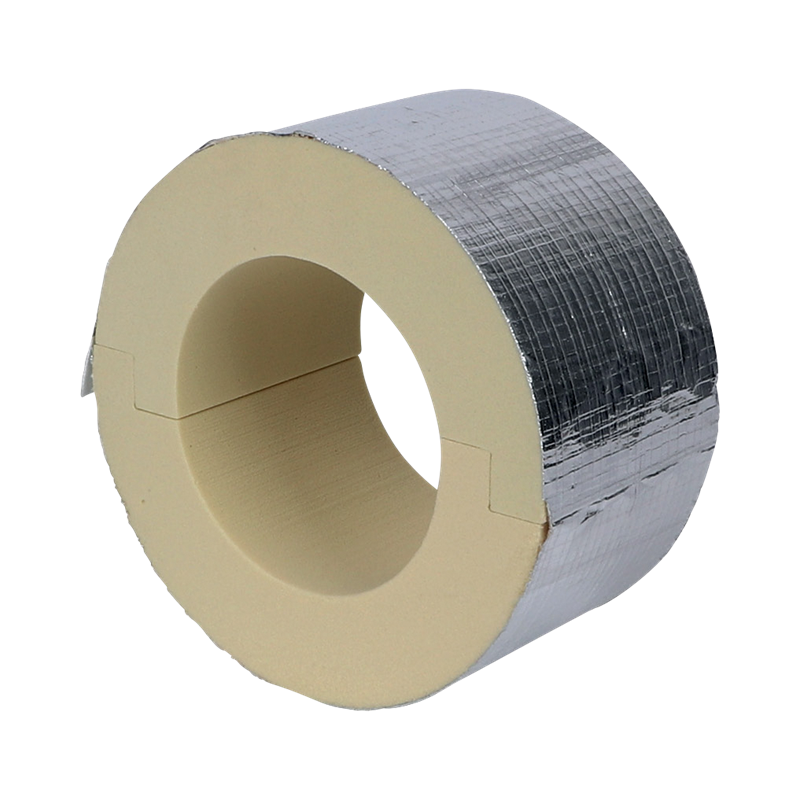

Walraven BISOFIX® PIR80 88.9

for insulated pipes

I800000089 Product line: Walraven BISOFIX®

Get project support

Walraven BISOFIX® PIR80 88.9

for insulated pipes

I800000089

Consent

Features

  • for combination with rigid foam insulation
  • cover joints with aluminium tape
  • does not contain CFC, HCFC, formaldehyde or cadmium
  • fire class B2
  • PIR density for D <110mm = 80kg/m³
  • PIR density for D >110mm = 120kg/m³
  • thermal conductivity lambda (approx. value): 0.030 W/(mK)
  • temperature range -45 °C - +105 °C

Specifications

Walraven BISOFIX® PIR80

Identification

Identification
Product Number I800000089

Product Dimensions

Product Dimensions
Outside Pipe Diameter (mm) Ref. letter: D 88.9
DN Ref. letter: DN DN 80
Total Height (mm) Ref. letter: H 249
Total Width (mm) Ref. letter: W 249
Total Length (mm) Ref. letter: L 75
Material Thickness (mm) Ref. letter: MT 80

Technical characteristics

Technical characteristics
Operating Temperature (°C) -45 - 105
Acoustic Insulation? No
Colour Beige
Halogen Free? Yes
Insulation Density (kg/m³) 80
Material Polyisocianurate (PIR)
Self Adhesive Mounting? Yes
Surface Protection Untreated
Surface Treatment Untreated
Thermal Insulation? Yes
Vapor-tight? Yes

Approvals & Declarations

Approvals & Declarations
CE mark No
KOT (National Technical Assessment, ITB) No
UK Conformity Assessment (UKCA) No

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 800

Weights

Weights
Weight [g] (g) 245
Weight [kg] (kg) 0.25

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 5
Pack 1 Height (mm) 455
Pack 1 Width (mm) 400
Pack 1 Length (mm) 600
Pack 1 Weight (g) 2490
Pack 2 Shape No Pack Type Available

Downloads & certificates

D0396 Walraven BISOFIX® PIR80 PDF | EN | Product info sheet Download
