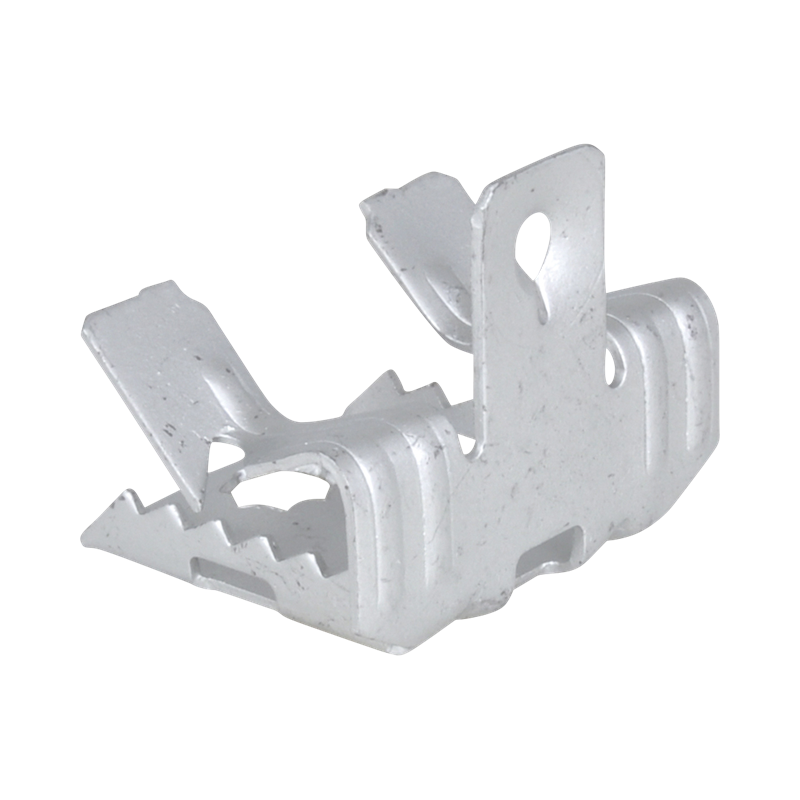

Walraven Britclips® FU7 M6 3-7mm
for flange
Features
- for a solid fixing under flanges without welding or drilling
- suitable for horizontal and vertical flanges
- with female thread M6
- material: spring steel (type CS70)
- surface treatment: Delta-Tone 9000 (480 hours)
Specifications
Identification
| Product Number | 51420607 |
|---|
Product Dimensions
| Flange (mm) Ref. letter: Fl | 3-7 |
|---|---|
| For flange size (mm) Ref. letter: fs | 3 - 7 |
| Thread Pitch (mm) Ref. letter: TP | 0.75 |
| Thread Size Ref. letter: TS | M6 |
| Total Depth (mm) Ref. letter: DtT | 37.5 |
| Total Height (mm) Ref. letter: H | 23 |
| Total Width (mm) Ref. letter: W | 45 |
Technical characteristics
| Material | Steel |
|---|---|
| Material Quality | St. 1.1231 |
| Surface Protection | Dacromet |
| Surface Treatment | Untreated |
| Thread Direction | Right-Handed Thread |
| Thread Type Ref. letter: TT | Metric |
| Type | FU7 |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 450 |
|---|
Weights
| Weight [g] (g) | 24 |
|---|---|
| Weight [kg] (kg) | 0.02 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 132 |
| Pack 1 Width (mm) | 193 |
| Pack 1 Length (mm) | 254 |
| Pack 1 Weight (g) | 2681 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 400 |
| Pack 2 Height (mm) | 280 |
| Pack 2 Width (mm) | 266 |
| Pack 2 Length (mm) | 400 |
| Pack 2 Weight (g) | 11036 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 10800 |
| Pack 3 Height (mm) | 984 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 318972 |
| Pack 4 Shape | No Pack Type Available |
