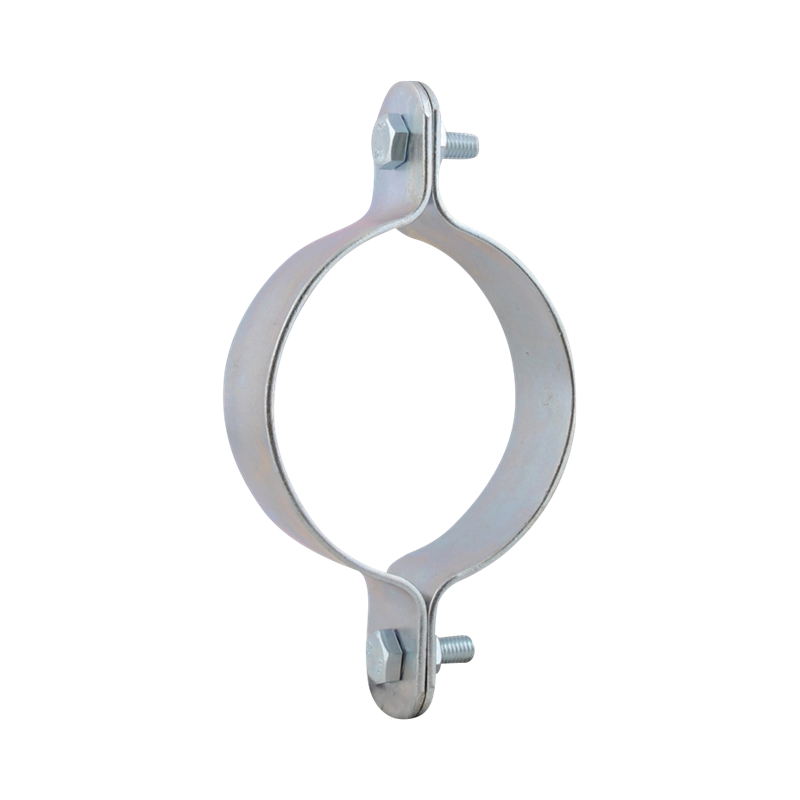

Walraven Split Band Clip (60x10 M20) zp 464mm
for steel, copper and insulated pipes
Features
- standard finish: zinc plated
Specifications
Identification
| Product Number | B4093464 |
|---|
Product Dimensions
| Connection Hole (mm) Ref. letter: CH | 22 |
|---|---|
| Heart To Heart Distance (mm) Ref. letter: k | 573 |
| Material Thickness (mm) Ref. letter: MT | 10 |
| Material Width (mm) Ref. letter: MW | 60 |
| Max. Inner Diameter (mm) Ref. letter: ID,max | 464 |
| Outside Pipe Diameter (mm) Ref. letter: D | 464 |
| Screw Size Ref. letter: ds | M20 |
| Thread Length (mm) Ref. letter: TL | 80 |
| Total Depth (mm) Ref. letter: DtT | 60 |
| Total Height (mm) Ref. letter: H | 484 |
| Total Width (mm) Ref. letter: W | 643 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Connection | None |
| Lining | None |
| Material | Steel |
| Material Quality | St. 1.0044 |
| Set Of Half Cover Brackets | Yes |
| Suitable for | Steel Tube, Metal Pipes |
| Suitable For Number Of Pipes | 1 |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
Approvals & Declarations
| EPD (Environmental Product Declaration) | No |
|---|
Safeloading
| Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z | 0 |
|---|
Packaging information
| Pack 1 Shape | Unpacked |
|---|---|
| Pack 1 Qty | 1 |
| Pack 2 Shape | No Pack Type Available |
