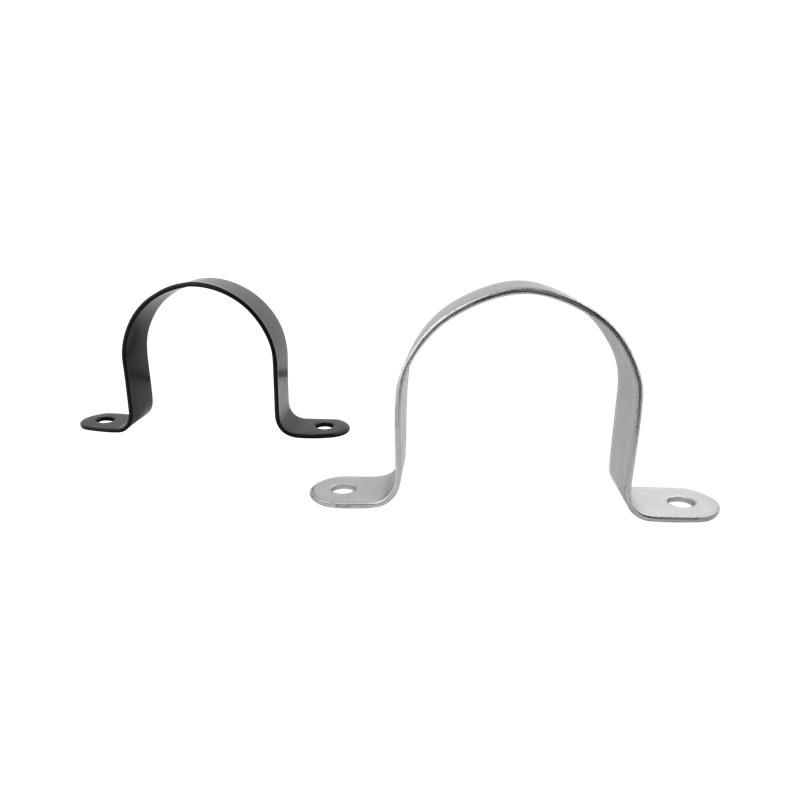

Walraven Saddle Clamp zp 65NB

for steel, copper and insulated pipes

B3103076

Get project support

Walraven Saddle Clamp zp 65NB

for steel, copper and insulated pipes

B3103076

Consent

Features

  • Type IH104: zinc plated, for steel pipe
  • Type IH143: nylon coated, for copper pipe
  • tight fit with pull down

Specifications

Walraven IH104 / IH143 Saddle Clamp

Identification

Identification
Product Number B3103076

Product Dimensions

Product Dimensions
Outside Pipe Diameter (mm) Ref. letter: D 76
Pipe Diameter Imperial (in) Ref. letter: D 2½
Fixing Hole (mm) Ref. letter: FH 14
Heart To Heart Distance (mm) Ref. letter: k 142
Material Thickness (mm) Ref. letter: MT 3
Total Height (mm) Ref. letter: H 77
Total Width (mm) Ref. letter: W 182
Total Depth (mm) Ref. letter: DtT 40

Technical characteristics

Technical characteristics
Material Steel
Material Quality St. 1.0044
Surface Protection Zinc Plated
Surface Treatment Untreated
Type Of Fastening Screw hole
UV Resistant? Yes

Approvals & Declarations

Approvals & Declarations
EPD (Environmental Product Declaration) No

Safeloading

Safeloading
Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z 0

Weights

Weights
Weight [g] (g) 250
Weight [kg] (kg) 0.25

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 45
Pack 1 Height (mm) 145
Pack 1 Width (mm) 315
Pack 1 Length (mm) 325
Pack 1 Weight (g) 12110
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 1440
Pack 2 Height (mm) 680
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 557060
Pack 3 Shape No Pack Type Available

Downloads & certificates

P0430 Walraven IH104 / IH143 Saddle Clamp PDF | EN | Product info sheet Download
