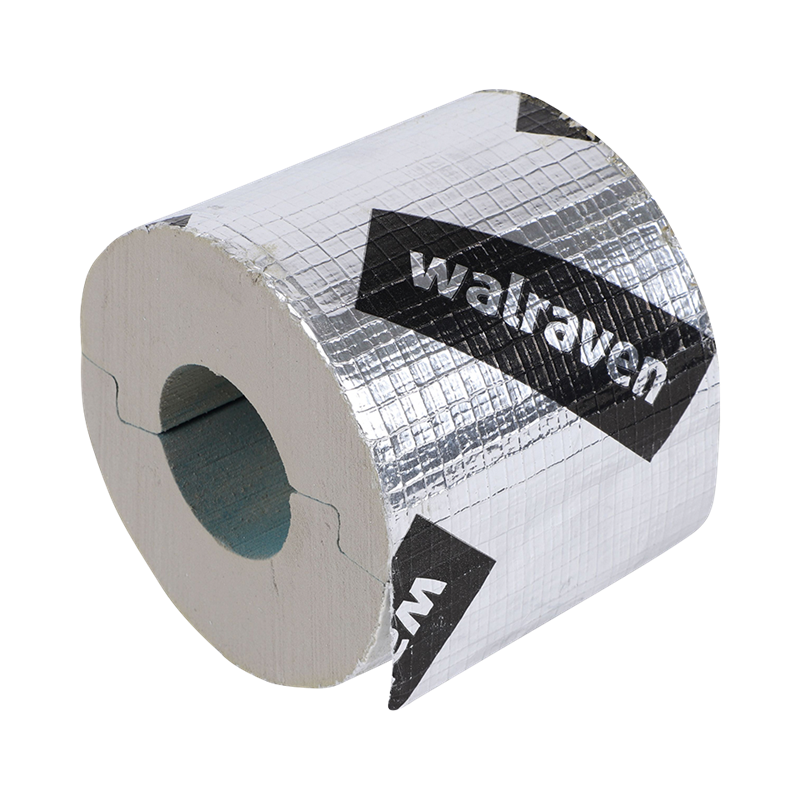

Walraven Phenblox 35Thk 15NB/22mm

for steel, copper and plastic pipe

8901035021 Product line: Walraven Phenblox®

Features

load bearing insulation ring for steel, copper and plastic pipe
metal spreader plate recommended above 50 NB
foil covered
manufactured from High Density Phenolic Foam
negligible water absorption
does not contain CFC's and HCFC's
K value 0.030 to 0.037 W/(mK) at 10 °C
thermal conductivity determined by testing cylindrical specimen according to BS EN ISO 8497
reaction to fire: BL-s1 d0
density: <111mm OD pipe, 60kgs/m3
density: 111mm to 169mm OD pipe, 80kgs/m3
density: >170mm OD pipe, 120kgs/m3
temperature resistance from -50 °C to +110 °C
load bearing insulation ring for steel, copper and plastic pipe
metal spreader plate above DN50
foil covered
manufactured from High Density Phenolic Foam
negligible water absorption
does not contain CFC's and HCFC's
K value 0.030 to 0.032 W/m C at 10 °C
density: 60kgs/m3
temperature resistance from -50 °C to +110 °C
Class 'O' to BS476/7
ignitability BS476 Pt5, Class 'P'
5% smoke emission to BS 5111

Identification
Product Number	8901035021

Product Dimensions
Outside Pipe Diameter (mm) Ref. letter: D	22
DN Ref. letter: DN	DN 15
Total Height (mm) Ref. letter: H	91
Total Width (mm) Ref. letter: W	91
Total Length (mm) Ref. letter: L	90
Material Thickness (mm) Ref. letter: MT	35

Technical characteristics
Operating Temperature (°C)	-50 - 110
Acoustic Insulation?	No
Colour	Grey
Euro Class Flaming Droplets Particles According EN 13501 1	d0
Euro Class Smoke Production According EN 13501 1	s1
Euro Fire Class According EN 13501 1	BL
Insulation Density (kg/m³)	60
Material	Phenolic foam
Material Quality	Phenolic
Self Adhesive Mounting?	Yes
Surface Protection	Untreated
Surface Treatment	Untreated
Thermal Insulation?	Yes
Vapor-tight?	Yes

Approvals & Declarations
CE mark	Yes
KOT (National Technical Assessment, ITB)	No
UK Conformity Assessment (UKCA)	Yes

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z	176

Weights
Weight [g] (g)	45.6
Weight [kg] (kg)	0.05
