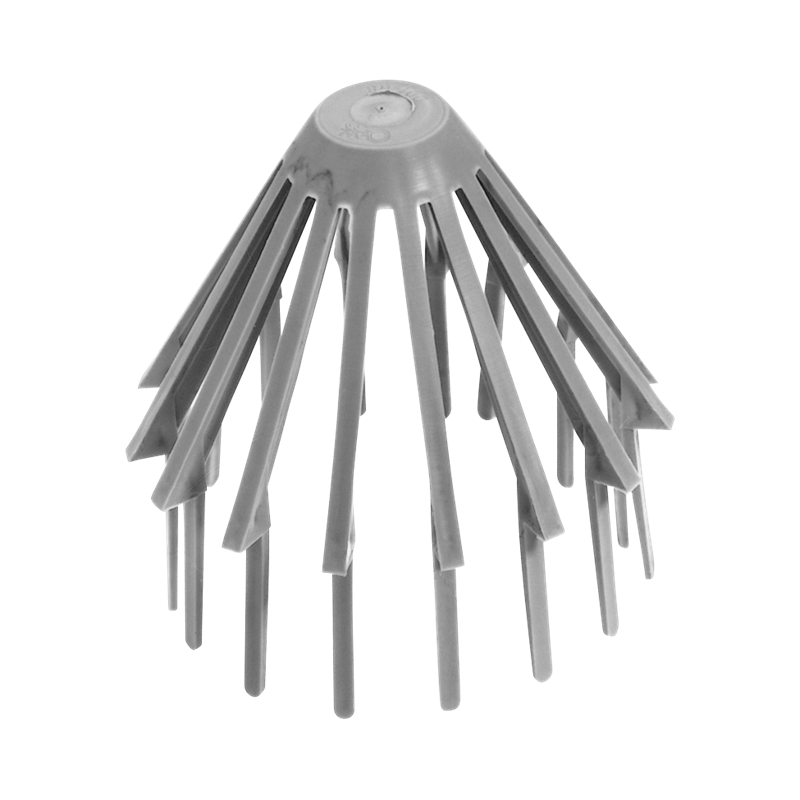

Walraven Leaf Trap PP grey 60-75mm
for rainwater drainage pipe
Features
- prevents blockage of down pipe caused by leaves and other debris in the gutter
- material: PP (polypropylene), grey (according to RAL 7035)
Specifications
Identification
| Product Number | 5952060 |
|---|
Product Dimensions
| Diameter (mm) Ref. letter: d | 60 - 75 |
|---|---|
| Height (mm) Ref. letter: h | 43 |
| Height 2 (mm) Ref. letter: h 2 | 25 |
| Total Depth (mm) Ref. letter: DtT | 83 |
| Total Height (mm) Ref. letter: H | 68 |
| Total Width (mm) Ref. letter: W | 83 |
Technical characteristics
| Material | Plastic |
|---|---|
| Material Quality | PP (PolyPropylene) |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
Weights
| Weight [g] (g) | 11 |
|---|---|
| Weight [kg] (kg) | 0.01 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 119 |
| Pack 1 Width (mm) | 264 |
| Pack 1 Length (mm) | 398 |
| Pack 1 Weight (g) | 764 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 3150 |
| Pack 2 Height (mm) | 1140 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 69132 |
| Pack 3 Shape | No Pack Type Available |
