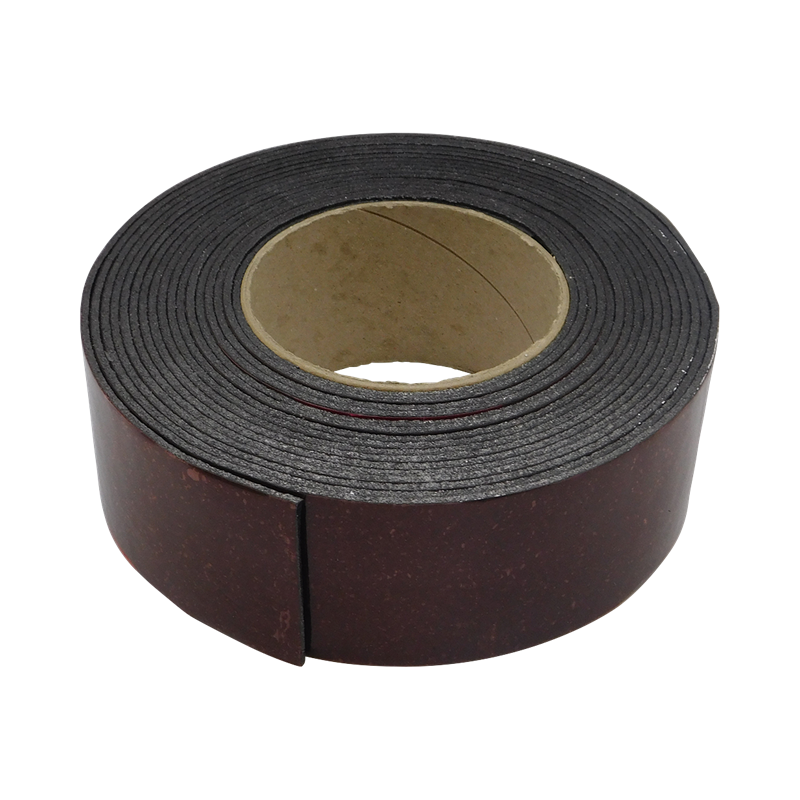

Walraven Pacifyre® IWM3 Band roll 12.5m 50x2mm
The flexible fire strip for plastic and multi-layer pipes
Features
- Allows for an installation with zero distance between pipes
- Easy to install without any additional fixing material due to self-adhesive strip
- Only one roll for numerous penetrations
- A small number of layers is required, so a smaller drill hole is possible
- Suitable for 40 mm shaft walls
- Suitable for damp conditions
- Easy on-site modification
- Also suitable for areas which are difficult to access, for example, corner penetrations
- With a fire resistance up to EI 120 U/U
- Tested according to EN 1366-3
Specifications
Identification
| Product Number | 2136050125 |
|---|
Product Dimensions
| Length (mm) Ref. letter: l | 12500 |
|---|---|
| Intumescent Width (mm) Ref. letter: IW | 50 |
| Intumescent Layer Thickness (mm) Ref. letter: ILT | 2 |
| Total Height (mm) Ref. letter: H | 50 |
| Total Width (mm) Ref. letter: W | 213 |
| Total Depth (mm) Ref. letter: DtT | 213 |
Technical characteristics
| Colour | Grey |
|---|---|
| Material | Intumescent |
Approvals & Declarations
| CE mark | Yes |
|---|---|
| European Technical Assessment (ETA) | Yes |
Weights
| Weight [g] (g) | 1850 |
|---|---|
| Weight [kg] (kg) | 1.85 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 1 |
| Pack 1 Height (mm) | 56 |
| Pack 1 Width (mm) | 222 |
| Pack 1 Length (mm) | 224 |
| Pack 1 Weight (g) | 1960 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 180 |
| Pack 2 Height (mm) | 800 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 373000 |
| Pack 3 Shape | No Pack Type Available |
