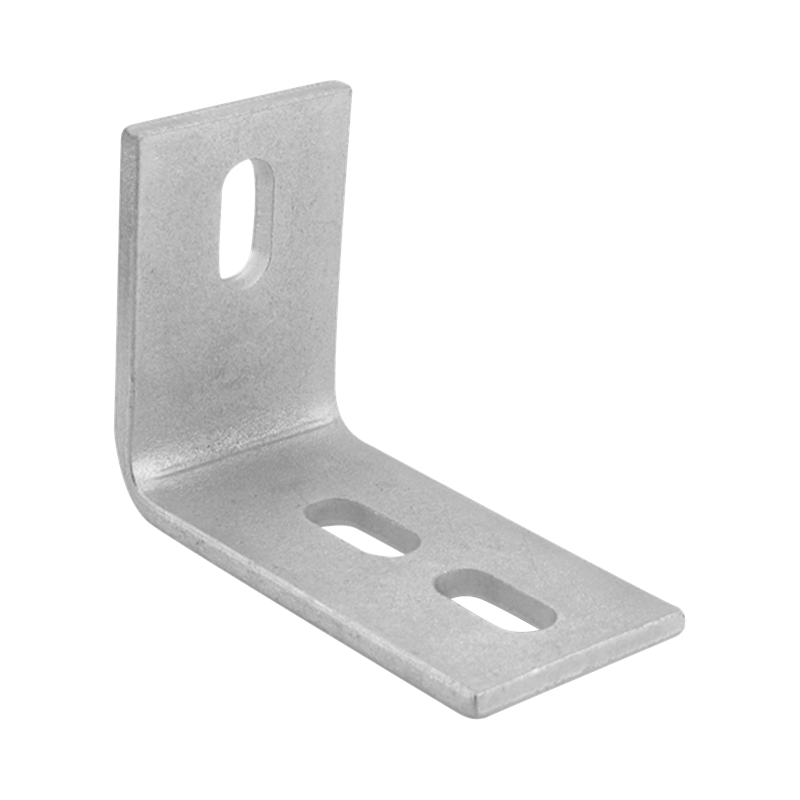

Walraven Rail Connector WM3 BUP 90 degree
to make Walraven WM3 fabrications
Features
- to make rail fabrications
- material: steel
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 6591090 |
|---|
Product Dimensions
| Angle (°) Ref. letter: a | 90 |
|---|---|
| Height (mm) Ref. letter: h | 74 |
| Length (mm) Ref. letter: l | 94 |
| Material Thickness (mm) Ref. letter: MT | 6 |
| Total Height (mm) Ref. letter: H | 74 |
| Total Width (mm) Ref. letter: W | 50 |
| Total Length (mm) Ref. letter: L | 94 |
Technical characteristics
| For Rail Type | 50x40 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 25 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Model | Angle |
| Suitable for | C-Profile |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Approvals & Declarations
| KOT (National Technical Assessment, ITB) | No |
|---|
Weights
| Weight [g] (g) | 330 |
|---|---|
| Weight [kg] (kg) | 0.33 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 119 |
| Pack 1 Width (mm) | 264 |
| Pack 1 Length (mm) | 398 |
| Pack 1 Weight (g) | 16700 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 1350 |
| Pack 2 Height (mm) | 501 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 472000 |
| Pack 3 Shape | No Pack Type Available |
