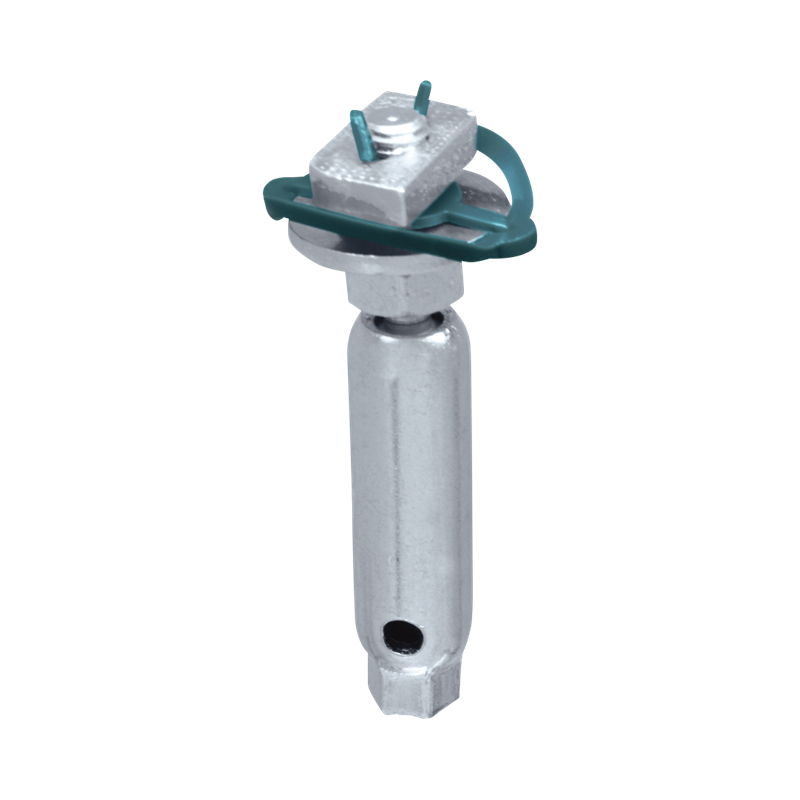

Walraven RapidRail® Ball Swivel Hanger zp M8/L45

fixing to Walraven RapidRail®

6520100 Product line: Walraven RapidRail®

Features

slide nut with ball swivel hanger, washer and Walraven RapidRail® spring
recommended to accomodate pipe expansions for metal pipes up to DN 50, plastic pipes up to DN 100
suitable for rails 27x18, 30x15, 30x20, 30x30, 30x45
ready-to-use pre-assembled for a quick fixing, and retains assembly in place before final tightening
with inspection hole to check screw-in depth (attention: when the threaded rod is screwed-in too deep, the ball swivel is blocked)
screw-in depth is continuously variable (see LU)
material: metal parts made of steel 1.0332; spring(s) made of POM (polyoxymethylene), green
zinc plated
For detailed technical information about our RAL marked products, please see the RAL datasheet in our web catalogue
Please note. Always use 2 ball swivel hangers and secure by additional hexagon nut (see application picture)
The maximum length change that can be dealt with, depends on the fixing distance (ceiling - pipe) The height difference that occurs as a result, needs to be taken into consideration.
To be used in combination with Walraven Ball Swivel Hangers.

Identification
Product Number	6520100

Product Dimensions
Thread Size Ref. letter: TS	M8
Thread Length (mm) Ref. letter: TL	15
Usable Length (mm) Ref. letter: LU	12.5
Material Thickness (mm) Ref. letter: MT	5
Total Height (mm) Ref. letter: H	49
Total Width (mm) Ref. letter: W	29
Total Depth (mm) Ref. letter: DtT	29
Thread Pitch (mm) Ref. letter: TP	1.25

Approvals & Declarations
CE mark	No
EN 1363-1 test report	No
European Technical Assessment (ETA)	No
KOT (National Technical Assessment, ITB)	Yes
UPC listing certificate	No

Safeloading
Maximum Allowed Load Fax (N) Ref. letter: Fa,x	182
Maximum Allowed Load Faz (N) Ref. letter: Fa,z	2000

Weights
Weight [g] (g)	42.5
Weight [kg] (kg)	0.04
