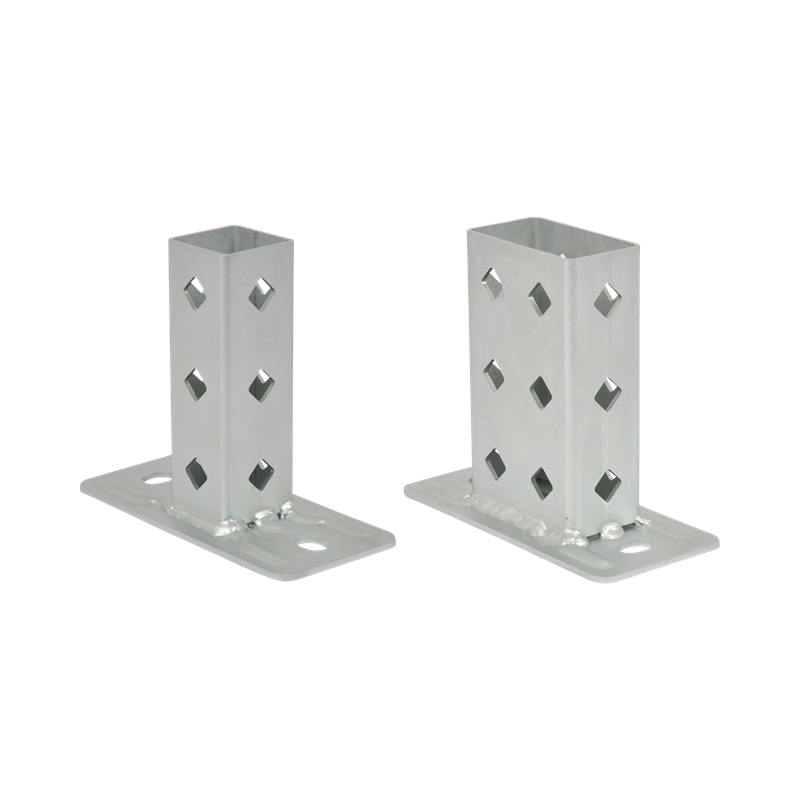

Walraven Strut Base Plate HD BUP 21D/82
base foot to connect fixing rails
Features
- heavy base plate for Walraven RapidStrut® rails
- can be used together with slide nut with plastic tabs or throughbolts
- hole pattern is adapted to the hole pattern of Walraven RapidStrut® rails
- closed profile for increased structural strength
- material: steel 1.0332
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 66588682 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 157 |
|---|---|
| Total Width (mm) Ref. letter: W | 85 |
| Total Length (mm) Ref. letter: L | 180 |
| Width (mm) Ref. letter: w | 50 |
| Height (mm) Ref. letter: h | 150 |
| Length (mm) Ref. letter: l | 90 |
| Heart To Heart Distance (mm) Ref. letter: k | 130.5 |
| Anchoring Slot (mm) Ref. letter: AS | 20x14 |
| Fixing Hole (mm) Ref. letter: FH | 13.8 |
| Material Thickness (mm) Ref. letter: MT | 4 |
| Material Thickness 2 (mm) Ref. letter: MT 2 | 3 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Material | Steel |
| Material Quality | St. 1.0332 |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Approvals & Declarations
| EN 1363-1 test report | No |
|---|---|
| KOT (National Technical Assessment, ITB) | Yes |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 7273 |
|---|
Weights
| Weight [g] (g) | 1290 |
|---|---|
| Weight [kg] (kg) | 1.29 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 5 |
| Pack 1 Height (mm) | 184 |
| Pack 1 Width (mm) | 270 |
| Pack 1 Length (mm) | 404 |
| Pack 1 Weight (g) | 6810 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 225 |
| Pack 2 Height (mm) | 1064 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 328000 |
| Pack 3 Shape | No Pack Type Available |
