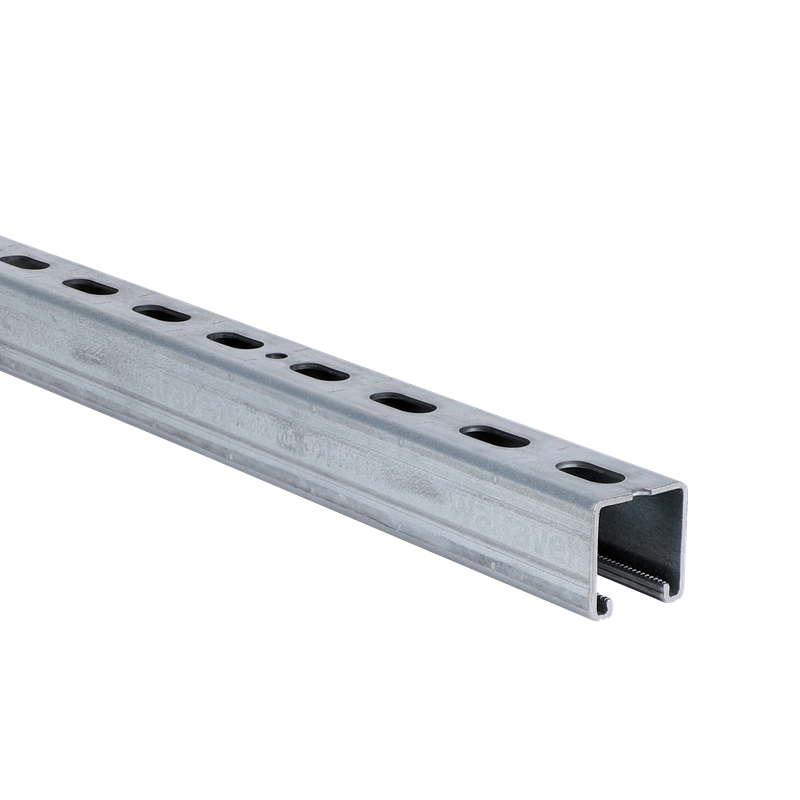

Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0

for medium weight fixing applications

6505322 Product line: Walraven RapidStrut®Application: Indoor HVAC fixings & supports
Download product sheet

Get project support

Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0

for medium weight fixing applications

6505322

Consent

Features

  • universal channel system
  • distance between channel end and first hole is always equal
  • inward formed flanges with serrated profile for extra grip
  • with continuous smart hole pattern including round anchor holes
  • with sawing marks each 50 mm on all 3 sides of the profile
  • pre-galvanized
  • Walraven RapidStrut® 41|H and 62|H tested for fire safety according to EN 1363-1
  • for more information about the max. allowed load (Faz) please refer to the loading tables or our online datasheet ‘Walraven RapidStrut® Data Sheet'
  • Channel stamped in accordance with BS6946:1988
Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0
Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0
Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0
Walraven RapidStrut® Rail 21|M 3m pg 41x21/2.0

Specifications

Walraven RapidStrut® channel (pg)

Identification
Identification
Product Number 6505322

Product Dimensions
Product Dimensions
Total Height (mm) Ref. letter: H 21
Total Width (mm) Ref. letter: W 41
Total Length (mm) Ref. letter: L 3000
Material Thickness (mm) Ref. letter: MT 2
Profile Opening (mm) Ref. letter: S 22
Fixing Hole (mm) Ref. letter: FH 13.5
Instance Spacing (mm) Ref. letter: IS 20
Instance Spacing 2 (mm) Ref. letter: IS 2 8.25
Instance Spacing 3 (mm) Ref. letter: IS 3 25
Instance Start Distance (mm) Ref. letter: ISD 10
Pitch (mm) Ref. letter: P 50
Pitch 2 (mm) Ref. letter: P 2 200

Technical characteristics
Technical characteristics
Type 21 | M
Colour Zinc
Layer Thickness Surface Protection (µm) 20
Material Steel
Material Quality St. 1.0242
Moment Of Inertia Iy (cm⁴) 1.12
Moment Of Inertia Iz (cm⁴) 4.8
Profile Model Singular profile
Profile Shape C-Profile
Section Modulus Wy (cm³) 0.95
Section Modulus Wz (cm³) 2.33
Snap Off? No
Suitable For Circuit Integrity? No
Surface Protection Pre-galvanized
Surface Treatment Untreated
Type Of Perforation Back perforated
With Toothing? Yes

Approvals & Declarations
Approvals & Declarations
BS 6946 test report No
CE mark Yes
EN 1363-1 test report No
EPD (Environmental Product Declaration) Yes
European Technical Assessment (ETA) Yes
KOT (National Technical Assessment, ITB) Yes
UPC listing certificate No

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 553
Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z 0.55

Weights
Weights
Weight [g] (g) 4125
Weight [kg] (kg) 4.13

Packaging information
Packaging information
Logistical Appearance Shape Length
Logistical Appearance Qty 1
Logistical Appearance Height (mm) 21
Logistical Appearance Width (mm) 41
Logistical Appearance Length (mm) 1000
Logistical Appearance Weight (g) 1380
Pack 1 Shape Bundle
Pack 1 Qty 30
Pack 1 Height (mm) 24
Pack 1 Width (mm) 252
Pack 1 Length (mm) 3000
Pack 1 Weight (g) 41500
Pack 2 Shape Bundle
Pack 2 Qty 300
Pack 2 Height (mm) 260
Pack 2 Width (mm) 240
Pack 2 Length (mm) 3000
Pack 2 Weight (g) 415000
Pack 3 Shape No Pack Type Available
