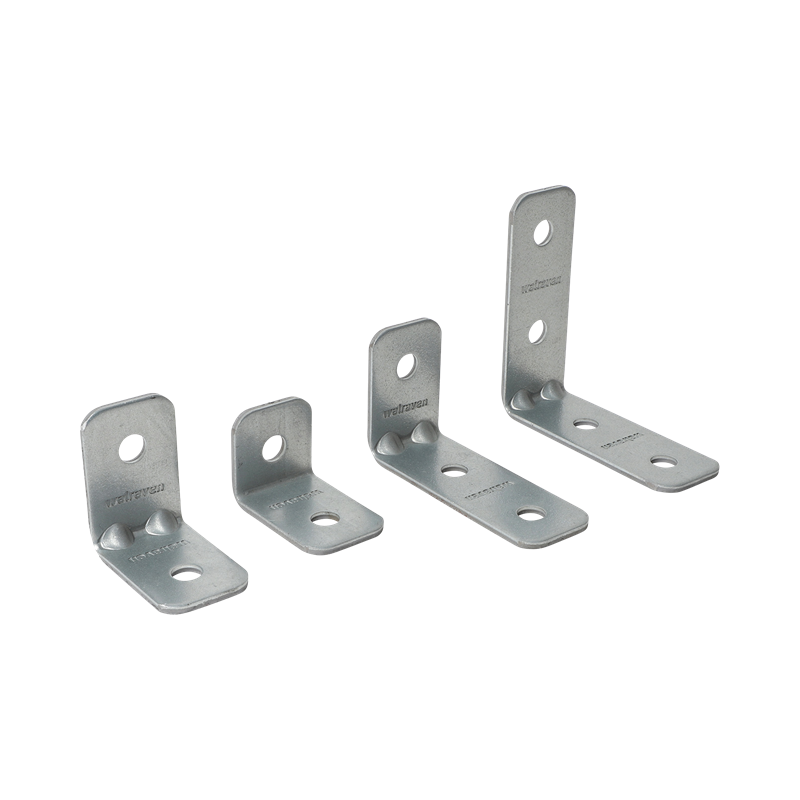

Walraven Strut Connector 90 short/short BUP 62x62mm
Features
- angle connector for all Walraven RapidStrut® rails to make fabrications
- the hole pattern is adapted to the hole pattern of Walraven RapidStrut® rails to use throughbolts
- user friendly by rounded edges
- with reinforced bend for extra strength
- material: steel 1.0242 (S250GD) + ZM310 MAC
- product is part of the Walraven Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Specifications
Identification
| Product Number | 66588201 |
|---|
Product Dimensions
| Angle (°) Ref. letter: a | 90 |
|---|---|
| Height (mm) Ref. letter: h | 62 |
| Length (mm) Ref. letter: l | 62 |
| Material Thickness (mm) Ref. letter: MT | 4 |
| Total Height (mm) Ref. letter: H | 62 |
| Total Width (mm) Ref. letter: W | 62 |
| Total Length (mm) Ref. letter: L | 40 |
Technical characteristics
| For Rail Type | 41x21, 41x41, 41x51, 41x62, 41x82 |
|---|---|
| Torque Moment For Installation (Nm) Ref. letter: Tinst | 30 |
| Material | Steel |
| Material Quality | St. 1.0242 |
| Model | S/S |
| Suitable for | C-Profile |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
Approvals & Declarations
| KOT (National Technical Assessment, ITB) | Yes |
|---|
Weights
| Weight [g] (g) | 138 |
|---|---|
| Weight [kg] (kg) | 0.14 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 70 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 7000 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 5400 |
| Pack 2 Height (mm) | 564 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 777000 |
| Pack 3 Shape | No Pack Type Available |
| Pack 4 Shape | No Pack Type Available |
Downloads & certificates
Related articles
665885102 | Walraven RapidStrut® Connector 90 G2 BUP short/short *
665885202 | Walraven RapidStrut® Connector 90 G2 BUP short/short
665885203 | Walraven RapidStrut® Connector 90 G2 BUP shrt/long
665885205 | Walraven RapidStrut® Connector 90 G2 BUP long/long
66598914 | Walraven Strut Connector 2+2/90 BUP 96x96
66598918 | Walraven Strut Connector 4+4/90 BUP 145x145
66588291 | Walraven Strut Connector 90 BUP 91x91x6
651868006 | Walraven Strut Slide Nut BUP PP tabs M6
651868008 | Walraven Strut Slide Nut BUP PP tabs M8
651868010 | Walraven Strut Slide Nut BUP PP tabs M10
651868012 | Walraven Strut Slide Nut BUP PP tabs M12
65381008 | Walraven Washer 25mm WM0-35 BUP 8.4/25mm
65381010 | Walraven Washer 25mm WM0-35 BUP 10.5/25mm
65381012 | Walraven Washer 25mm WM0-35 BUP 13.0/25mm
65381016 | Walraven Washer 30mm WM0-35 BUP 17.0/30mm
67685130 | Walraven Yeti® 130 including EPDM mat 130x130
